Brand:COMIFO
Model:CAL7-1.2x1300
Weight:10t
Dimensions:20200*4500*1400mm
Mini Order:1set
Supply:100set
deliver goods:Within 30 days
Features:
>Modular design allows adding a section at a time
>Three sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
>Pneumatic controlled straightener and beader
>Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line

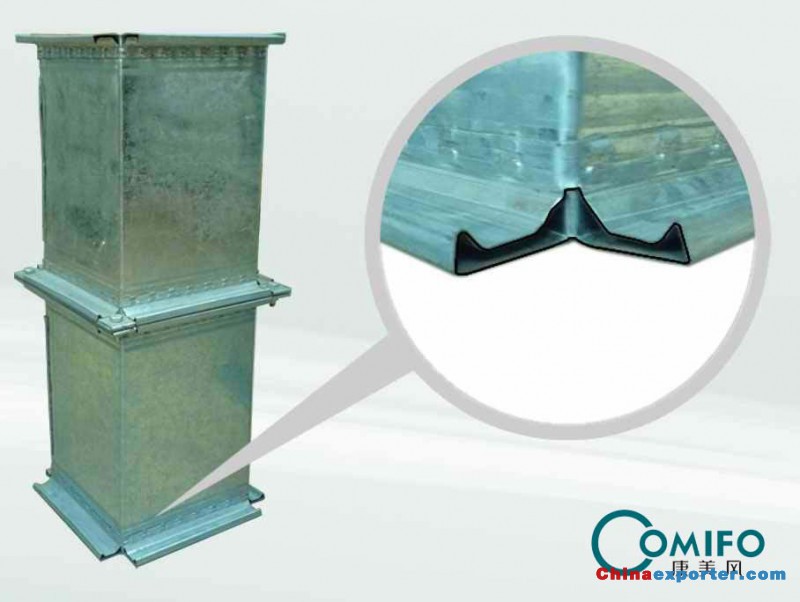

>Duplex GDF flange former, forms GDF flange by double sides
>Comifo patented hydraulic fold- seamer seams a fullwrap duct after folding
>Optimizes floor space by inline position of machines, guarantees high efficiency
>Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Capabilities:
√ Alternative width for 4(1300mm) or 5(1550) material
√ Sheet capacity: 18-27ga (0.4-1.2mm)
√ Shearing tolerance of ±0.5mm
√ Hydraulic folding diagonal tolerance of ±0.5mm
√ 0-54FPM (0-18m/min) feeding speed,fast acting back gauge
|
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
|
CAL7-1.2x1300 |
1300mm |
0.5-1.2mm |
0-18m/min |
±0.5mm |
±0.5mm |
|
CAL7-1.2x1600 |
1600mm |
0.5-1.2mm |
0-18m/min |
±0.5mm |
±0.5mm |
Stations: coil-straightening-beading-punching square-notching-folding -shearing-automotion pittsburgh lock forming-coil conveyer (optional)-duplex GDF flange forming -hydraulic folding and seaming

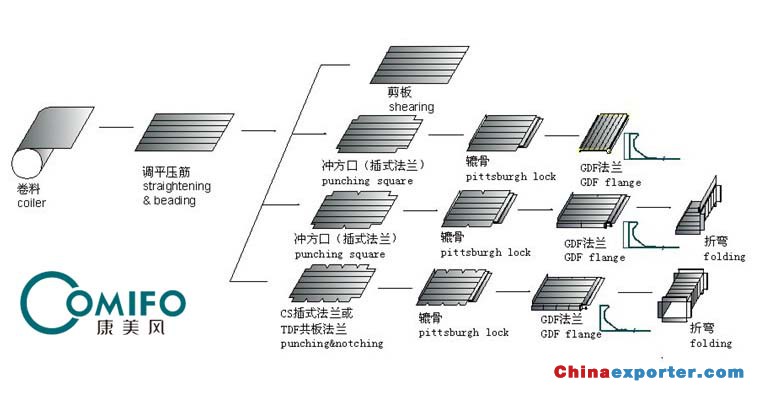

Work Flow:
