Brand:COMIFO
Model:CSL3-1.2*1300
Weight:3.5t
Dimensions:4000*2300*1400mm
Mini Order:1set
Supply:100set
deliver goods:Within 30 days

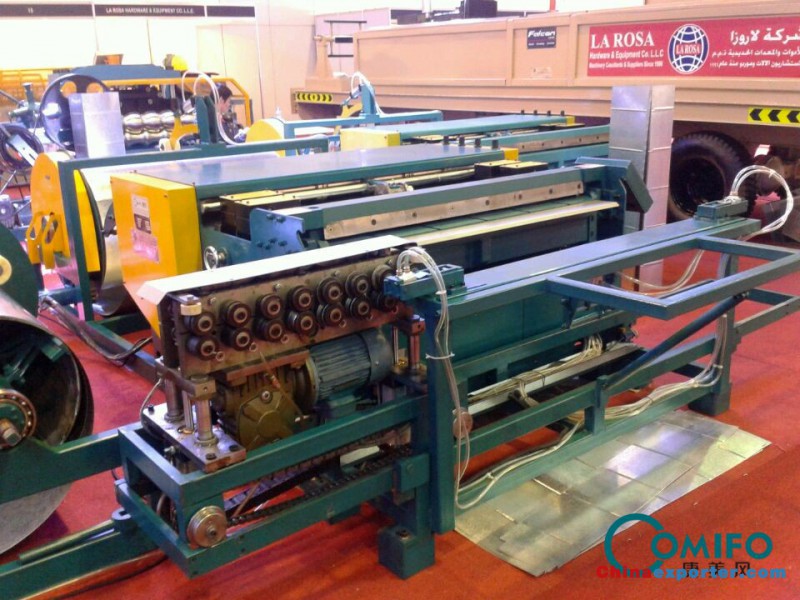

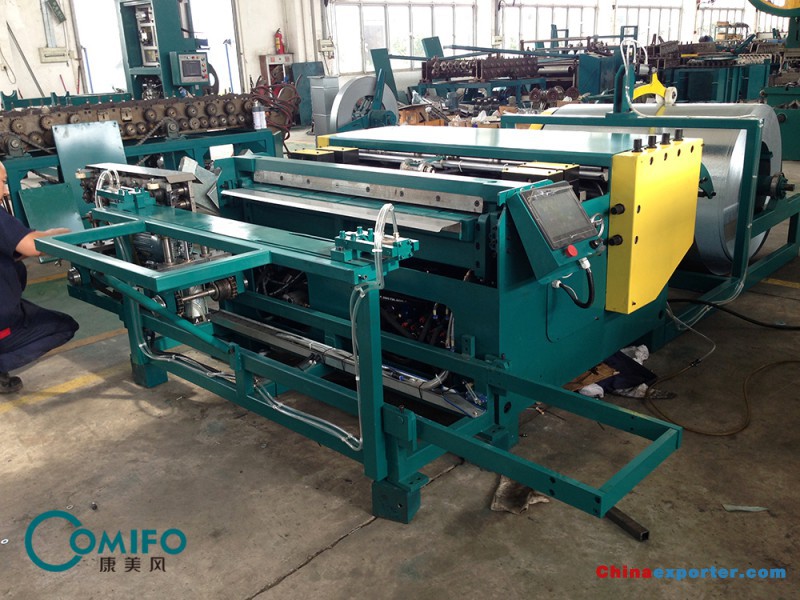

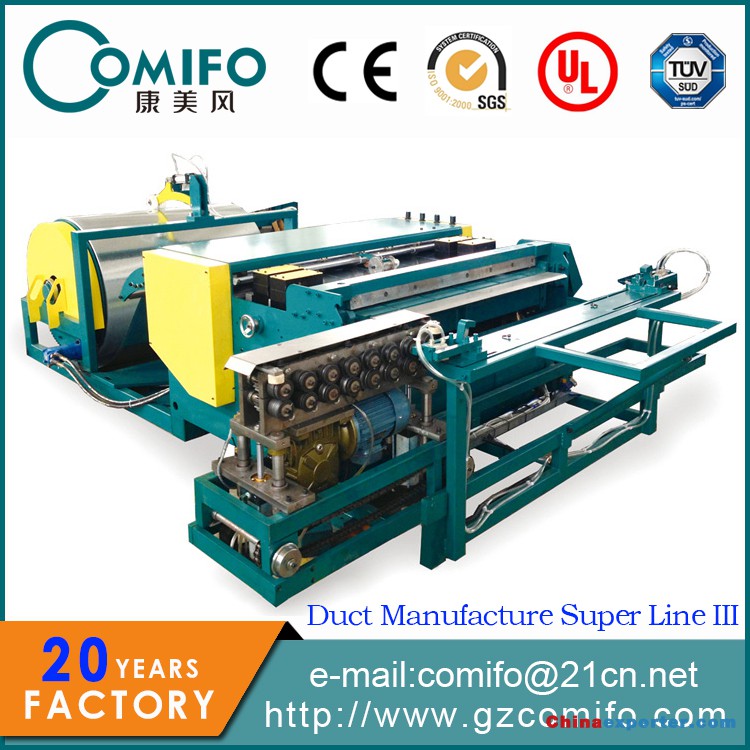

Super line III consists of cradle style decoiler , straightening , beading , punching , notching ,folding , hydraulic shearing and pittsburgh lock forming type 1 ( forms pittsburgh lock ) . It processes maximum coil with 1300mm or 1600mm galvanized steel for 18 to 30 gague material into blank for TDF integrated flange duct , TTF /LT mate flange duct or angle iron flange duct .
|
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
|
CSL3-1.2x1300 |
1300mm |
0.4-1.2mm |
0-18m/min |
±0.5mm |
±0.5mm |
|
CSL3-1.2x1600 |
1600mm |
0.4-1.2mm |
0-18m/min |
±0.5mm |
±0.5mm |
Features :
1. Motor driven decoiling , selectable coils stand by , maximum capacity of 5-ton per station ( optional : up to 10-ton per station )
2. Bends right angle lock
3. Pittsburgh lock former , forms pittsburgh lock
4. Optimizes floor space by inline position of machines , guarantees high efficiency
5. Accurate PLC control unit , preset available profiles and folding style , notching size , punching size , cutting dimension on touchscreen
Stations:
coil - straightening - beading - punching square - notching - folding - shearing - pittsburgh lock forming

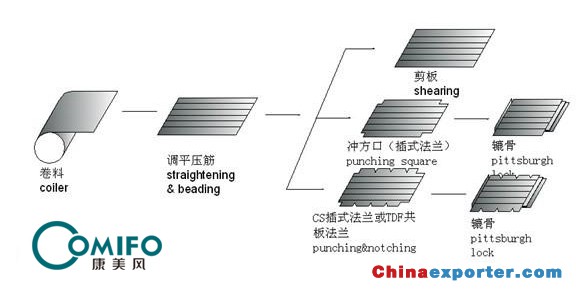

Work Flow:
