Brand:BENYE
Sloar panel:monocrystaline silicon,18v/140w
Battery:Colloid,12V/50AH,
Light:patent 3U lamp 12V/14w
Mini Order:1set
Supply:5000set

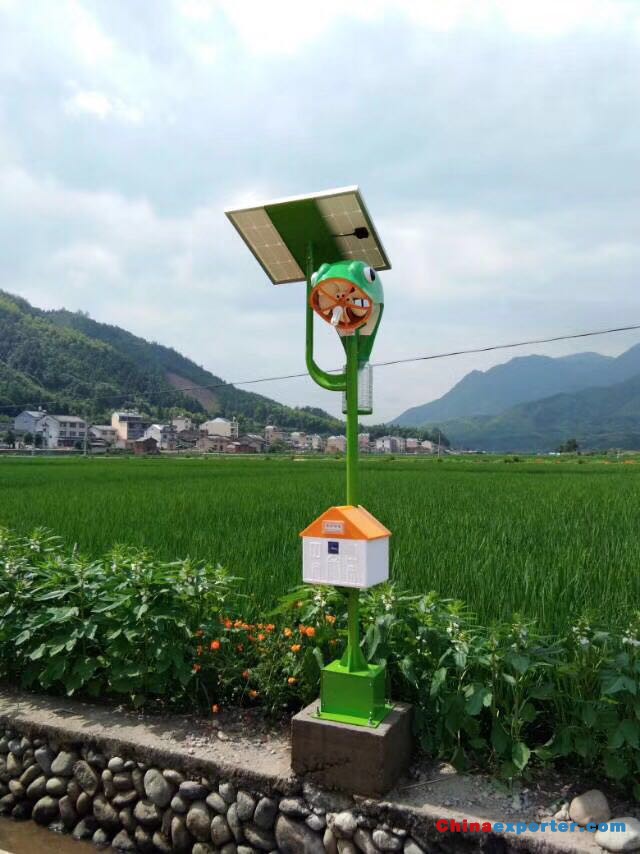

Solar insect trap 3BCT-28、3BCT-28-1、3BCT-26
Product features:
The design of downwards wind suction port avoids the blackening of the lamp, increases the trapping range, and improves the efficiency of attracting insects, and also a variety of different styles available.
Application areas: farmland of various crops, agriculture.
3BCT-28
3BCT-28-1
3BCT-26
sizes
1050*800*2700mm
Suction case
ABS，suction port diameter：300mm
Fan blades
ABS，diameter: 285mm
motor
Brushless DC
motor, DV12V, rated power: 23W,
protection grade:
IP44
Insect
attracting lamp
Specialized
energy-saving, DV12V, 12-15W
Solar panel
Monocrystalline
silicon，voltage: DV18V
power：70W
100W
70W
battery
Colloid,
maintenance free, 40AH
Colloid,
maintenance free,50AH
Colloid,
maintenance free, 40AH
control
Light
control, rain control, time control, automatic charge and discharge
protection, working condition: -35-80 ° C, protection grade: IP67
pole
Galvanized
steel pipe surface sprayed，diameter≥60mm, thickness≥2mm
Collecting
box
Transparent
PVC，sizes:160*160*300mm
Automatic
Pouring off
Function(optional)
Voltage:
DC12V, torsion: 6NM,
rotation
degree: 90°
Trapping Coverage
15-20
acres/unit
