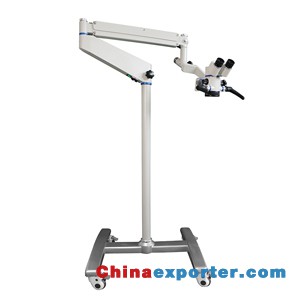

MIC-CD510 operation microscope adopt high resolution and HD optic system,strongtereoscopic impression and large depth of field,LED cold light illumination,continual adjustable brightness,manual zoom, Small body move flexiblily and conveniently,application for all kinds of surgery ,such as ENT and so on.also can be designed as mounted-wall or ceilling model.

Specification

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D.

Binocular tube

high brightness 90° Straight binocular tube,

Magnification

manual 3-step changer, ratio  0.6，1.0，1.6 , total magnification 3.75x,  6.25x，10x,

illumination

LED cold light,strong light,longer lifetime,brightness adjustable infinitely,

illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm，Φ32mm，Φ20mm

build-in small-spot,blue light filter.

Objectives

f250mm(175mm,200mm,250mm,300mm,350mm,400mm etc )

Focusing

Route range  + -15mm.

Rotating head for all direction

operate by two handles，free and easy to operate

Maximum length of arm

1100mm
