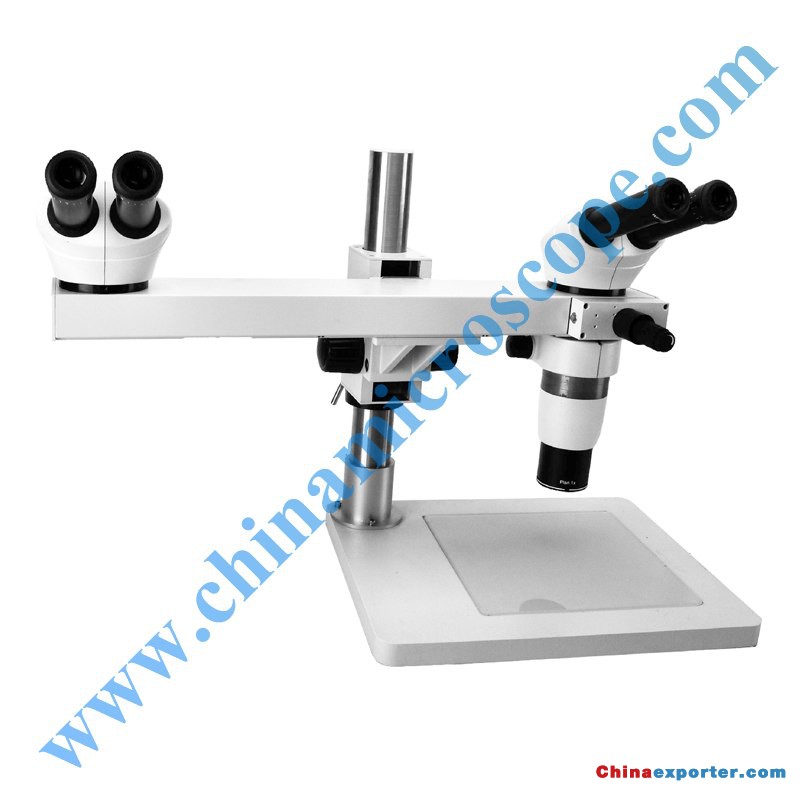

Optical System

 Parallel optical zoom system

MIC-S46M

MIC-S48M

MIC-S40M

Drawing Tube

Binocular Head, 20°Inclination

●

●

●

Tilting Binocular Head,

0°-35° Inclination

 /

 /

 /

Photo Attachment

(one photo tube)

 /

 /

 /

Photo Attachment

(two photo tube)

○

○

○

Eyepiece

EW10×/22

●

●

●

WF15×/16

○

○

○

WF20×/12

○

○

○

Zoom Objective

0.8×-5×

●

 /

 /

0.8×-6.4×

 /

●

 /

0.8×-8×

 /

 /

●

Objective

Plan Achromatic

Objective 1× WD：78mm

●

●

●

Achromatic Objective 0.3× WD：276mm

○

○

○

0.5X Achromatic objective WD：195mm

○

○

○

Plan Apochromatic

Objective 0.5× WD：126mm

○

○

○

Plan Achromatic

Objective 2× WD：32.5mm

○

○

○

Zoom Ratio

1: 6

●

 /

 /

1: 8

 /

●

 /

1: 10

 /

 /

●

Working Distance

78mm

●

●

●

Focusing

Focusing Range 105mm

●

●

●

Pointer

Red and Green LED teaching pointer

●

●

●

Focus range

base stage

Toughened

glass stage

215mm

420mmx350mm

250mmx250mm

●

●

●
