Brand:DCI
Mini Order:1Piece
Supply:600000000Piece
deliver goods:Within 60 days

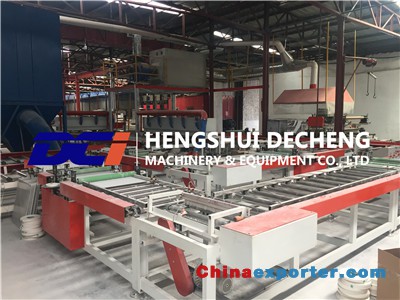

1. Type of Production Line
Production capacity: 6 million sqm/year (Calculate by 24hrs/day and 300 working days per year)
Power: 380V/50Hz; 3 phase
Size of boards (L*W):1220mm*1830mm;
Size of Finished product (L*W): 600mm*600mm
Thickness:6-12 mm
Films on front side of board: PVC films
Films on back side of board: Aluminum films
2. Equipment List
3. Description of Machines
3.1Double-Side laminating Machine
It includes gluing device,rolling device and flattening device. It can work with two side (front side PVC film, back side aluminum film) at same time, no need to turn it over. It is widely used for coating the surface of density board, multilayer plywood, joinery board, glass, acrylic, mosaic,all kinds of flat plate.
3.2 Dividing and Cutting Machine
It includes vertical saw, horizontal saw, conveyor roller way, board-pushing device and so on. It also includes dust collecting system. Easy to operate, can divide and cut board into small pieces simply. With dust collector then make the working environment much cleaner.
3.3 Edge-Sealing Machine
PLC and HMI control system, it can produce quickly and stably, with high efficiency; It is the professional edge sealing equipment which makes ceiling tiles.
3.4 Thermoplastic Packing Machine
It includes two parts: edge sealing&cutting machine and shrinking machine, the product will be covered films and cut automatically, then go through shrinking machine and finish packing.
