Product Introduction

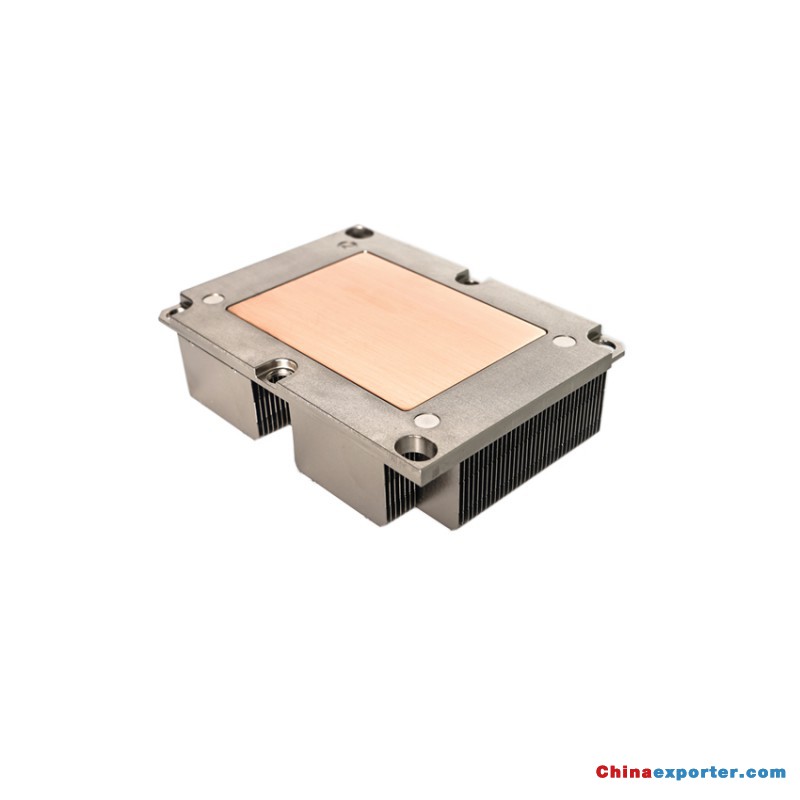

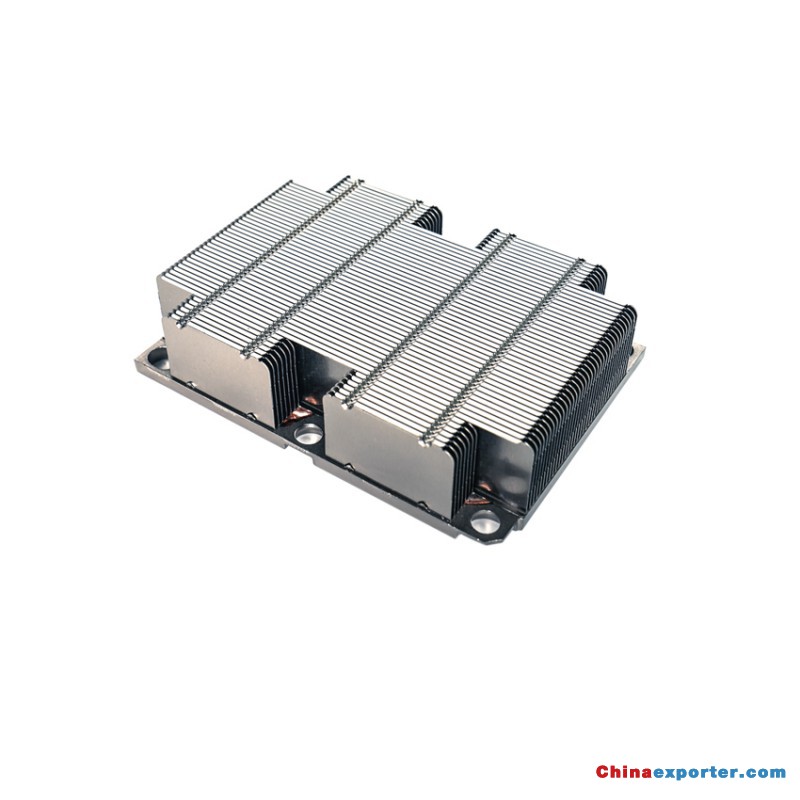

1U Passive CPU server Heat Sink.A custom stacked Fin heatsink is made from sheets of aluminum or copper, where the metal is stamped into a particular configuration based on the intended application. For maximum design flexibility, fins can be stamped into a broad range of geometries and thicknesses. A stamped Fin custom heatsink is a useful approach for medium to high volume production.
Design Flowchart
Custom Heat pipe Heat sink, Copper heat sink Supplier, heatsink OEM service.
Technical Parameters
Heatsinks : Alumimum stacked fin +Al CU base + 2 heat pipes
Process: Custom stamping fin, press fit,CNC machining, soldering
Size : Customization
Fastener : 4 Screws +4 Springs
Application: Customized made pin fin heatsink aluminum extrusion with heat pipe, For VGA cooler, cpu cooler, graphics card cooling fan
This type of stacked fin heats which are formed by press-fit approach can realize a cooling structure that has both top and bottom base plates for mounting power devices. No interface material is required for assembly when using this technique and it has the benefits of low development cost, high flexibility in forming heat sinks with different width and structures so that it is highly universal. This technique has been widely used in the cooling of high power devices such as power inverters and transformers, generators, etc.
Stacked heat sinks have advantages such as increasing cooling area while forming a closed passage at the same time so as to achieve higher thermal performance, no restriction on it volume, higher strength, lower manufacturing cost, easier installation and maintenance, longer service life, etc. Via our technical innovations,.
Our Customers
Our most of products are customized and widely applied in IPC,server,telecom & communications infrastructure &power,LED lighting,medical equipment and other products.
Shipping Methods
Any cold forging heatsinks services, please contact Pioneer Thermal. We'll reply you within 12 hours.
Help your design design team to improve the part for manufacture.(design refine/process optimize/cost reasonable)
