deliver goods:Within 3 days

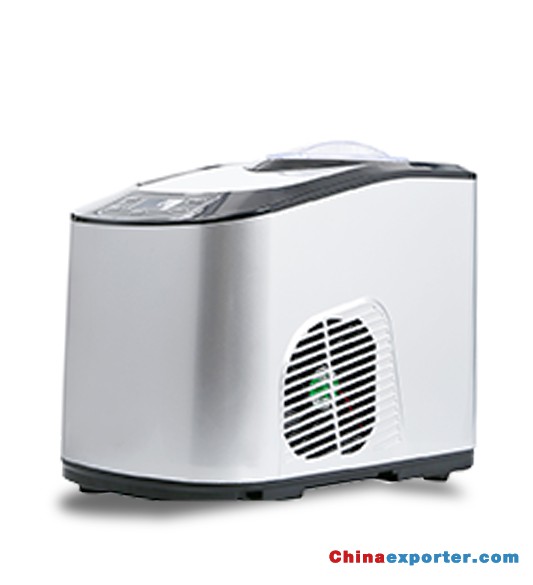

Ice Maker HZB-12A _MG_0653 Details
Voltage:220-240V/50Hz, 230V/60Hz, 115V/60Hz, 100V/60Hz
Refrigerant: R600a
Warranty: 1 year
Unit dimension: 222x313x320mm
Evaporator material: Cooper
China ice maker Performance
|
Ice Capacity（Kg/24Hr,25℃ Air) |
12 |
12 |
|
Rated Current A |
0.7 |
1.7 |
|
Water Tank Volume L |
2 |
2 |
|
Ice Basket Volume Kg |
0.7 |
0.7 |
|
Cycle Time |
6-13min |
6-13min |
|
Ice Cubes Qty Per Cycle |
9 |
9 |
|
Ice Cube Shape |
Bullet |
Bullet |
|
Weight Of One Ice Cube |
7-9g |
7-9g |
|
Water Supply |
Manually |
Manually |
|
Clean Method |
Manually |
Manually |
UNPACKING YOUR ICE MAKER
1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket.
3. Put the ice maker on a level & flat counter top without direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Maker sure that there is at least 4 inches gap between the back & LH/RH sides with the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
5. The appliance must be positioned so that the plug is accessible.
