Price:Unkonwn
Brand:HONZHAN
deliver goods:Within 3 days

Send inquiry

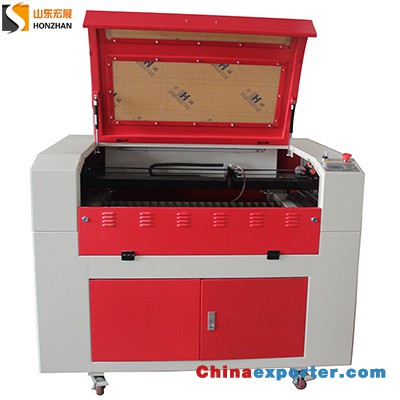

1). HZ-6090 laser engraving machine adopts professional laser system, stable and reliable, use Ruida control board.
2). The body sheet metal uses thick cold plate, environmentally friendly plastic powder spraying process, no rust, anti-static.
The installation platform performs secondary calibration to ensure the horizontal precision of the X-axis and Y-axis guide rails, the bottom is thickened to effectively carry the lifting load.

The motorized up and down platform is more stable and does not deform.

Advertising signs, acrylic, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working,

engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.

3. Technical Parameters:

Model

HZ-6090 laser engraving machine

Working area(mm)

600*900mm

Platform

Honeycomb platform, optional blade platform, motorized up and down worktable

Standard Laser power

60W, Optional 80W, 100W, 130W, 150W

Laser type

sealed CO2 laser tube, optional Reci laser tube

Working life of tube

1500hours for CO2 laser tube

10000 hours for Reci laser tube

Max object thickness

280mm

Working speed

0-4000mm/min

Cutting depth

Acrylic 0-20mm, depending on materials

Engraving speed

0-1500mm/s

Cutting speed

0-1000mm/s

Location precision

≤0.01mm

Minimum forming character

1.5*1.5mm

Power supply

220V±10% 50HZ or 110V±10% 60HZ
