Brand:HONZHAN
deliver goods:Within 3 days
Plate-type furniture, custom furniture, office furniture, wooden cabinet wardrobe , closet door, MDF wood doors, craft wooden door, paint free door, TV cabinet, computer table, bedside table, shoe cabinet, wooden kitchen cabinet

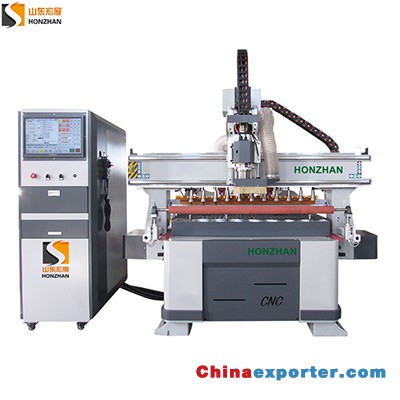

2. CNC Router Performance Characteristics:
1). Machining center engraving machine, intelligent control system, automatically select and replace tools, automatically change spindle speed, machine running speed, The tool magazine can be equipped with multiple tools to process complex process products, which greatly improves production efficiency.
2). With breakpoint power and continuous engraving, power failure recovery, processing time prediction and other functions. Humanized design and perfect oil lubrication system greatly extend the service life of the machine.
Model
HZ-ATC2513L
Platform size
1300*2550mm
Work area(X,Y,Z)
1300*2500*300mm
Travelling speed
60m-80m/min (MAX)
Working speed
25m/min (MAX)
Working voltage
AC380V/3PH/50HZ
Spindle power
ChangChuan CC 9KW Automatic tool changer spindle (24000RPM/min speed)
Tools magazine
Linear 8 tools magazine automatic tool changer
Device architecture
The machine bed is finished by five-face milling center. Milling drilling, one-shot forming, vibration aging treatment, gantry tempering, no deformation, stable structure.
Driving system
Leadshine servo motor and driving system
Transmission parts
Taiwan YYC Alloy hardened Rack and pinion, Taiwan Hiwin linear rail and TBI Ball screw
Operating system
Taiwan Baoyuan operate system
Positioning method
High precision automatic air positioning cylinder
Countertop structure
Vacuum table, with patch function, to ensure that small board not move.
