Brand:HONZHAN
deliver goods:Within 3 days
1). Furniture: wooden doors, solid wood furniture, tables, chairs, windows.
Plate-type furniture, custom furniture, office furniture, wooden cabinet wardrobe , closet door, MDF wood doors, craft wooden door, paint free door, TV cabinet, computer table, bedside table, shoe cabinet, wooden kitchen cabinet
2. CNC Router Performance Characteristics:
1). Machining center engraving machine, intelligent control system, automatically select and replace tools, automatically change spindle speed, machine running speed, The tool magazine can be equipped with multiple tools to process complex process products, which greatly improves production efficiency.
2). With breakpoint power and continuous engraving, power failure recovery, processing time prediction and other functions. Humanized design and perfect oil lubrication system greatly extend the service life of the machine.

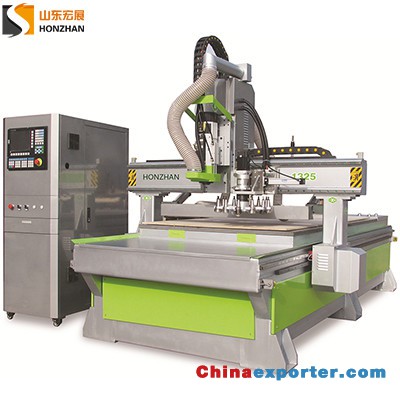

Model
HZ-ATC1325B
Platform size
1300*2550mm
Work area(X,Y,Z)
1300*2500*200mm
Travelling speed
60m-80m/min (MAX)
Working speed
20m/min (MAX)
Working voltage
AC380V/3PH/50HZ
Spindle power
ChangChuan CC 9KW Automatic tool changer spindle (24000RPM/min speed)
Tools magazine
Carousel 12 tools magazine automatic tool changer
Device architecture
De-stressing and finishing milling, one molding process,
Anti-jamming independent cabinet, high structural stability and small deformation
Driving system
Leadshine servo motor and driving system
Transmission parts
Alloy hardened Rack and pinion, TBI Ball screw transmission and Hiwin linear guide
Operating system
Taiwan Baoyuan operate system
