Electronic Instrument
High performance Freezing point 0 deg C thermostat
2021-01-01 14:23  Click:73270
Price:$100.00/set
Brand:DEARTO
Weight:7.4Kg
Accuracy:0℃±0.03℃
Power:220V/50Hz
Mini Order:1set
deliver goods:Within 7 days
Send inquiry

1.Product introduction

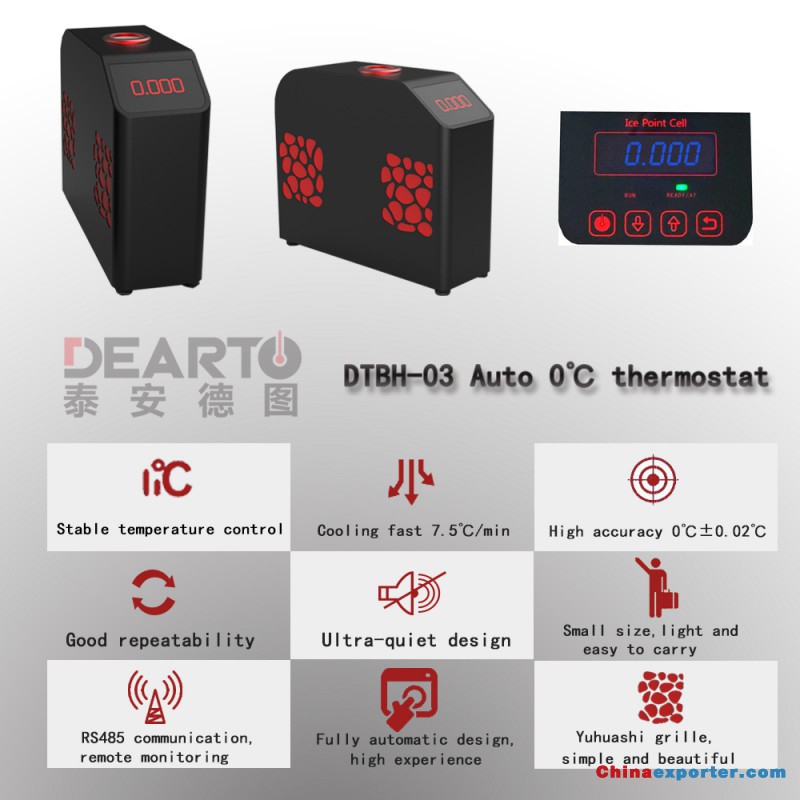

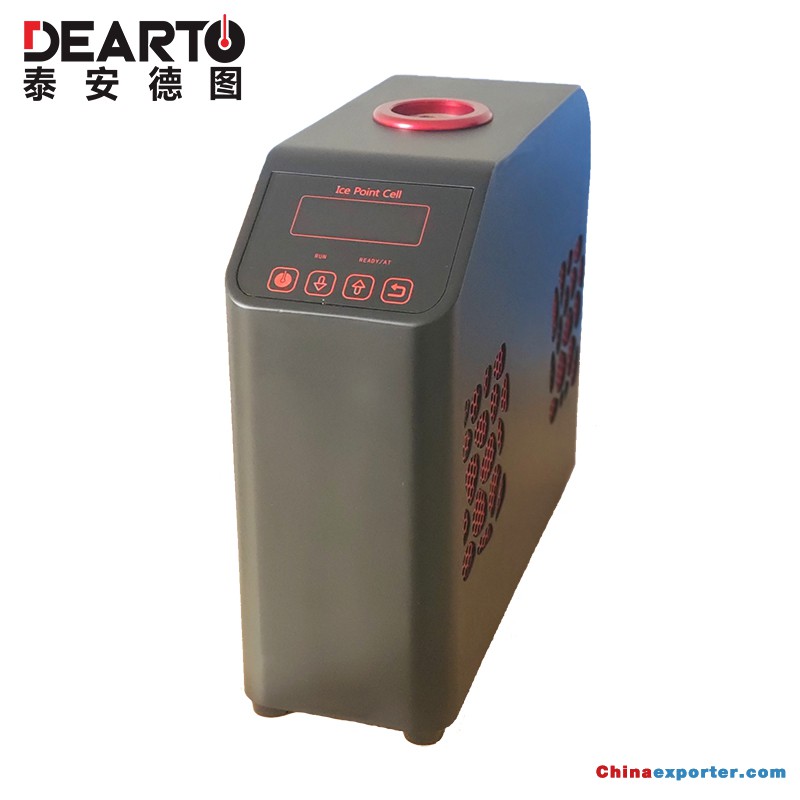

The DTBH zero-temperature thermostat is a device that can provide a stable and accurate zero-degrees celsius temperature field for the thermocouple reference end for a long time. It is an ideal substitute for the traditional ice bucket and is very suitable for the verification / calibration of thermocouples.

2.Product feature


n Excellent temperature control performance, fluctuation can be controlled within ±0.02/30min

n High-precision temperature measurement, temperature measurement accuracy is better than 0.01 (@0 ), temperature drift is better than 10ppm

n Resolution up to 0.001

n Good consistency between holes, temperature difference of 7 jacks is better than 0.02

n The cooling rate is fast and the stabilization time is short. It only takes 15 minutes from room temperature 25to zero degree

n Full automatic design, no need to operate after booting, can be used after stable prompt

n Support RS485 communication, can carry out remote monitoring, control and alarm

n Touch panel for easy cleaning and maintenance

n Silent design

n Left and right grid design, simple and elegant appearance

n Portable, hidden handles, easy to carry

3. Product Technical Index



Parameters

Index

Model

DTBH-03

Accuracy

0℃±0.03

Resolution

0.001

Stability

<0.02/30min

Number of jacks/aperture

7×φ9

Depth of the socket

205 mm

Communication interface

RS485/MODBUS-RTU

Dimension

360mm(L)×125mm(W)×310mm(H)

Nominal voltage

AC220V/50Hz±10%

Environment temperature

10-30

Relative humidity

10%RH-80%RH(without condensation)
