deliver goods:Within 3 days

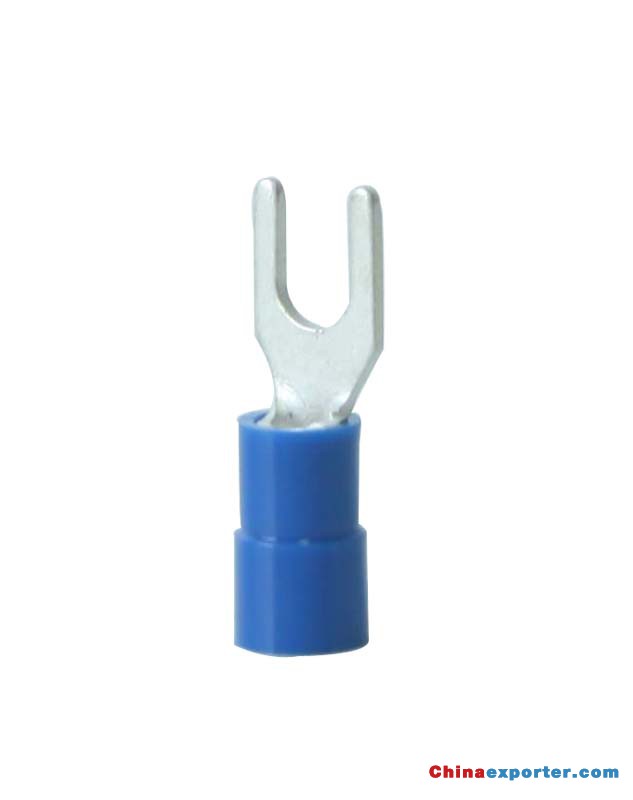

Nylon-Insulated Single Crimp Terminals
The imported automation equipment ensures that every process is consistent and perfect. In this way, the reliability, safety, and appearance of our electrical connectors is greatly improved. The company established an independent UL laboratory in 2015, which enables KF to obtain timely and effective data, and in turn, delivering satisfactory results in regards to both the technical verification in product development and the regular quality inspection of manufactured products.
|
Spec (American AWG) |
22-16 |
16-1 4 |
14-12 |
12-10 |
8 |
6 |
4 |
|
Spec (JIS AWG) |
1.25 |
2 |
3.5 |
5.5 |
8 |
14 |
22 |
|
Spec (DIN AWG) |
1 |
2.5 |
|
4.0-6.0 |
10 |
16 |
25 |
|
Spec (GB mm2) |
0.5-1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
|
Max Current |
19 |
27 |
37 |
48 |
62 |
88 |
115 |
| Operating Voltage | 600V | ||||||
| Temperature Withstand | 105℃ | ||||||
