Brand:ZK/CHANSON
working area stroke:1220×2440mm
Spindle power:6kw*4
Max. cutting speed:30m/min
Mini Order:1set
Supply:20set
deliver goods:Within 15 days
Buy now
Introduction:
Perfect for large or workpieces of panel or solid wood furniture and doors,artificial marble countertops,light metal pieces.
|

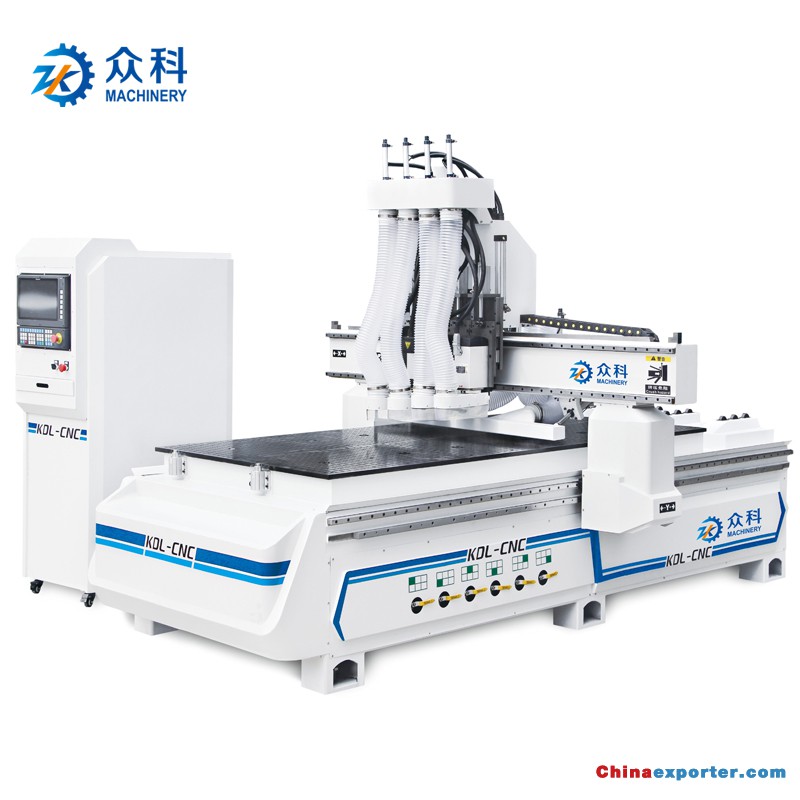

SPECIFICATIONS FOR MK30B CNC Router
|
|
|
Worktable size
|
1300×2550mm
|
|
X , Y, Z working area stroke
|
1220×2440×30mm
|
|
Processing precision
|
±0.1mm
|
|
Worktable
|
Vaccum worktable
|
|
|
X,Y Axis: Taiwan rack gear
|
|
Z Axis: Taiwan TBI ball screw
|
|
|
Max. traverse speed
|
60m/min
|
|
Max. cutting speed
|
30m/min
|
|
Spindle power
|
6kw×4 air-cooling spindle
|
|
Spindle speed
|
18000rpm
|
|
Operation instruction
|
G-code,S-code,T-code,F-code
|
|
Working voltage
|
AC380V/50Hz
|
|
Operation system
|
Baoyuan servo(Taiwan)
|
|
Vacuum pump power
|
water cooling 7.5kw
|
|
Total power
|
28.9kw
|
|
Weight
|
3000kg
|
|
Overall dimensions
|
3600×2300×2150mm
|
Main Features
1) Machine body made by cast steel body with aging & tempering treatment, strong and durable.
2) X,Y,Z transmission use Taiwan rack gear .
3) Electrical components: Adopts Schneider brand safety, stable and reliable
4)Operation system:Baoyuan servo(Taiwan) high efficiency.

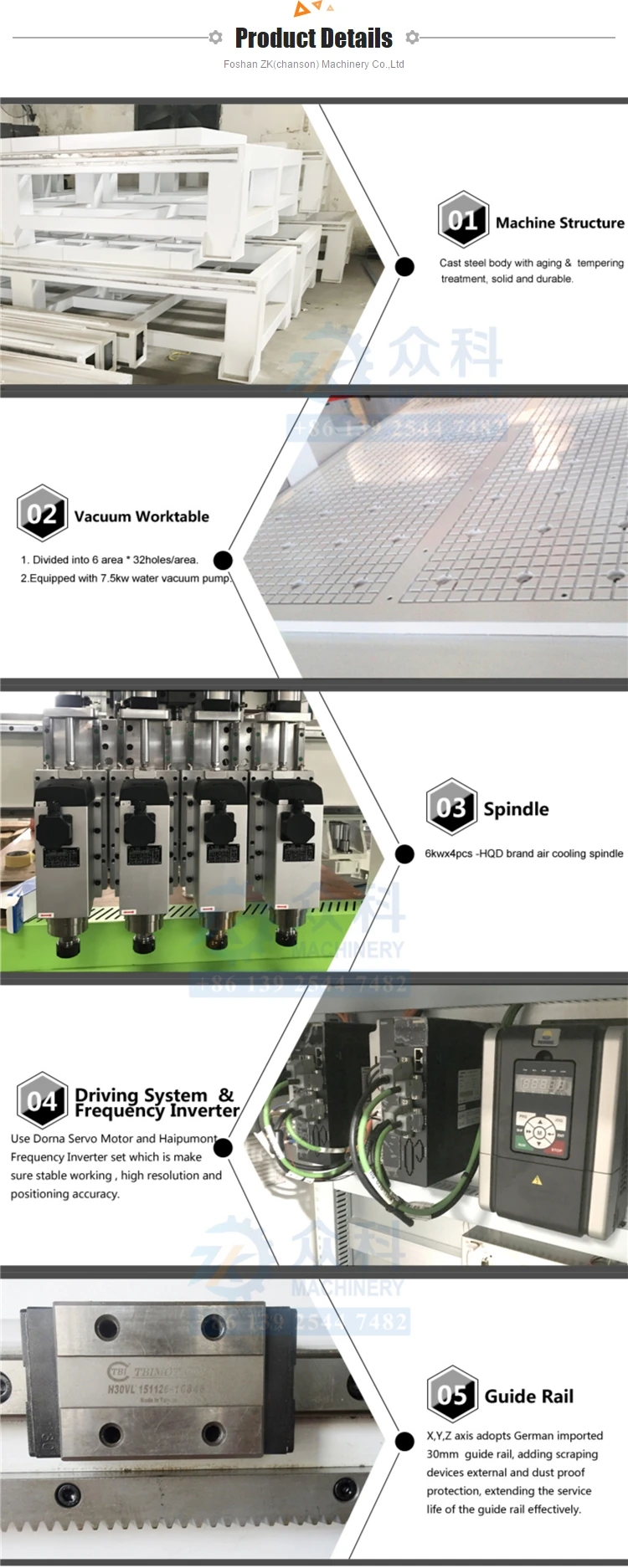

Details Images
Sample Photo
