Brand:ZK/CHANSON
Planing width:630mm
Planing thickness:3~180mm
Planing length:≥250mm
Mini Order:11
Supply:201
deliver goods:Within 5 days
Buy now

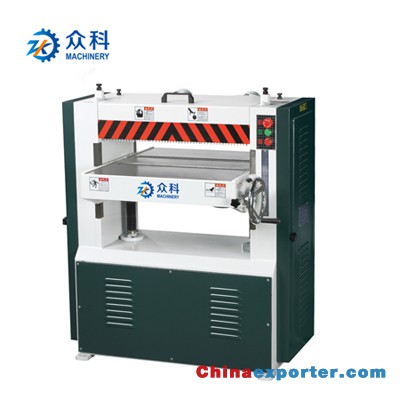

It is the common equipment used in processing furniture and solid wood,flat planning for the wooden parts
1.The body is with heavy-duty steel and with special heat treatment process, better stability and lower noise.
2.All the parts are made with fine processing of high-precision CNC Center, greatly improve the precision.
3.The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
|
SPECIFICATIONS FOR SINGLE SIDE THICKNESS PLANER
|
|
|||
|
Model
|
MB108
|
MB106
|
MB105
|
MB104
|
|
Spindle speed
|
6500rpm
|
6500rpm
|
6500rpm
|
6500rpm
|
|
Feeding speed
|
6~8m/mn
|
6~8m/mn
|
6~8m/mn
|
6~8m/mn
|
|
Planing width
|
830mm
|
630mm
|
500mm
|
400mm
|
|
Planing thickness
|
5~180mm
|
3~180mm
|
3~180mm
|
3~180mm
|
|
Planing length
|
≥250mm
|
≥250mm
|
≥250mm
|
≥250mm
|
|
Max cutting output
|
4mm
|
4mm
|
4mm
|
4mm
|
|
Motor power
|
7.5kw
|
5.5kw
|
5.5kw
|
4kw
|
|
Weight
|
630kg
|
550kg
|
500kg
|
430kg
|
|
Overall Dimensions
|
760×1030×1270mm
|
760×1060×1270mm
|
760×930×1240mm
|
760×830×1240mm
|
