Brand:ZK/CHANSON
Worktable size:1250×2500 mm
Max pressure:60T
Pressing-plate max open distance:1000mm
Mini Order:1set
Supply:20set
deliver goods:Within 10 days

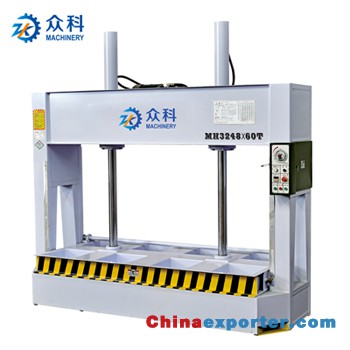

The machine is applied for modern fashion board,plyboard,flak-board,laminating board.woodbased panel board,furniure manufacture,solid board furniture,speaker box,plastic and wooden mould etc.Easy to operate,working exact and fasthigh efficiency,it is the necessary pressed workpiece equipment in artifical panel,the composite furniture and solid board furniture manufacture material.
|
Size Of Cold Press
|
|||
|
Model
|
MH3248×50T
|
MH3248×60T
|
MH3248×80T
|
|
Worktable size
|
1250×2500 mm
|
1250×2500 mm
|
1250×2500 mm
|
|
Max pressure
|
50T
|
60T
|
80T
|
|
Pressing-plate max open distance
|
1000/1300mm
|
1000/1300mm
|
1000/1300/1500mm
|
|
Oil cylinder diamter
|
Φ90×2pcs
|
Φ100×2pcs
|
Φ160×2pcs
|
|
Hydrailic motor power
|
5.5kw
|
5.5kw
|
5.5kw
|
|
Weight
|
1800KG
|
2150KG
|
2350KG
|
|
Overall size
|
3000×1250×2950mm
|
3000×1250×2950mm
|
3000×1250×2950mm
|
Main Features
1.adopting auto-manual functions, may choose auto and manual control function separately.
2.Auto-pressure regulating oil circuit (line) function
3.Auto-adding and auto-holding pressure function
4.With Safety device(safety catch)
5.Emergency safety brake function
6.With excellent electrical parts
7.Stable and easy to operate
8.the worktable is milled by special machine, flatness error conform to national standards
