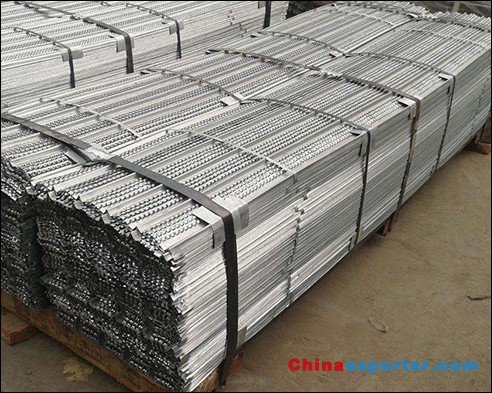

High Rib Lath Panels, Hot Galvanized, HR 2.44x0.61

Hy Rib Lath Expanded metal
Surface treatment: Hot Galvanized
Color: Silver
Feature: Corrosion Resistance
Length: 2.44 m x Width: 0.61 m
Sizes can be customized
For bridge construction.

Galvanised High Ribbed Mesh Lathing, HR 12x8

Hi ribbed mesh type, 0.30mm thickness, 12x8, rib height 5mm, rib distance 100mm, lath width 610mm

Hy Formworks Lath, HR 7/8 Inch

Hy rib type: 3.4 hy rib lath (7/8") used in concrete forming
Popular in USA market
Available in gal. steel and stainless

Hy–Rib Expanded Formwork ( Galvanised ), HR450 X 22 X 28

Hy rib formwork:
Specification: 450mm width, 2200mm length, 0.28mm thickness
Material: Galvanized mild steel
Mesh type: Hy rib expanded
Weight: 2.3kg/pc
Singapore

Hi Rib Lath, For Tunnel Forming, HR450 X 2200 X 23

Hi rib mesh, hot dip galvanized
Material: Q195/SGCC
Finish: Hot dipped zinc coating galv.
450mm x 2200mm x 0.23mm
Min. tensile strength:270N/mm2
For Indonesia tunnel forming template
