model:DY-400
capacity:100-200
power:45kw
deliver goods:Within 3 days
Send inquiry

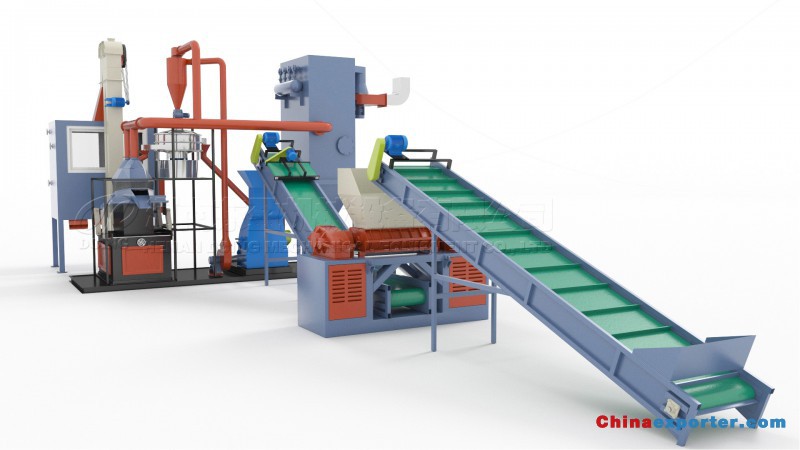

PCB board recycling machine is an e waste recycling machinery, which is specially designed for separating out the precious metals and resin fiber from the scrap PCB boards for recycle use.PCB board recycling machine can deal with all kinds of waste circuit boards, copper clad laminates, circuit boards, computer boards, television boards, printed circuit boards, all kinds of waste electrical motherboards and processing wastes.
The working procedure of the PCB board recycling machine consists of six steps.
1.Dismantling.
Using the PCB dismantling machine to disassemble the segments on the circuit board to separate the electronic components and the circuit substrate.
2.Shredding.
Through the shredder, the circuit board is shredded into small pieces.
3.Crushing.
using a crusher for mechanical crushing, and the crusher will crush the shredded materials into smaller particles.
4.Screening.
Using eddy-vibrating screen , the particles that can not be screened out are broken again.
5.Air Separation.
The air flow specific gravity separator uses the principle of air suspension to separate the metal and resin powder (non-metallic) by separating the substances with different specific gravity.
6.Electrostatic separation.
Because the broken particles are too small, the proportion of some metal and non-metal mixture is similar, so the metal and non-metal mixture is separated again by using the conductive principle, making the metal purity higher.
The PCB board recycling machine has a variety of advantages.
1.The recovery rate of metal is over 99% by the double separation process of air flow and static electricity, so it has a high profit.
2.Negative pressure feeding and pulse dust removal system are adopted to clean the working environment.
3.All processes adopt dry physical separation, which will not cause any pollution to water, soil, air and other environmental resources.
4.It has a PLC control system, so its automation degree is high, and the operation is simple.
