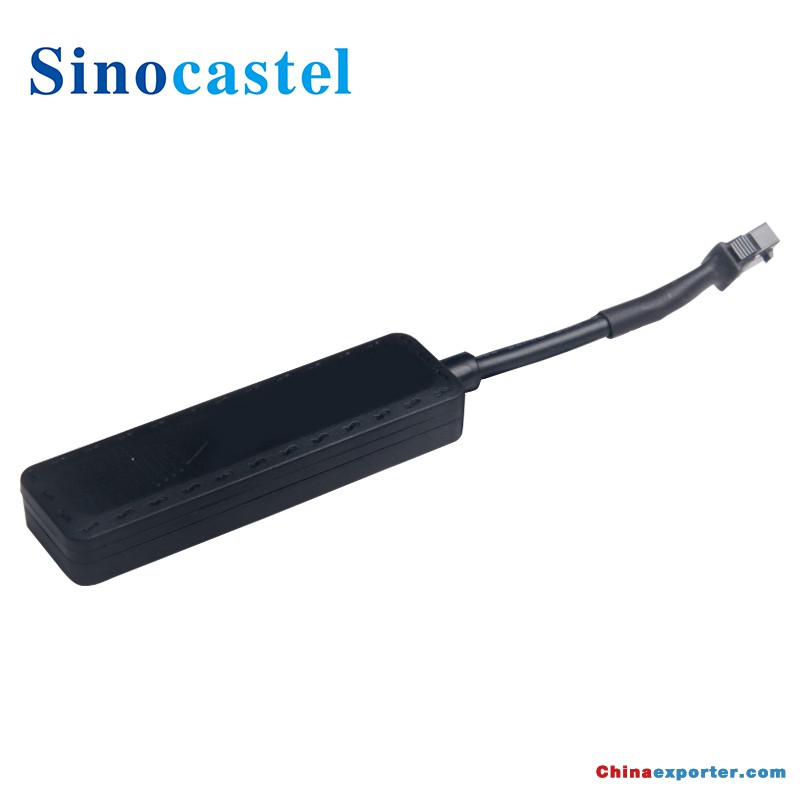

Brand:Sinocastel
deliver goods:Within 3 days
Send inquiry
| Dimension | 80mm(L) x 51mm(W) x 31mm(H) |
| Weight | 200g |
| Data transmission | GPRS/SMS |
| Positioning method | GPS/A-GPS/LBS |
| Built-In battery |
Disposable super Li-battery with large capacity (3.6V,5400mAh) Ultra-low self discharge rate: <1% with 1 year storage at 25℃ |
|
Power |
Working Current: <120mA Standby Current: <30uA |
| GPS |
Channels: 50 Sensitivity: -161dBm Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
| GSM |
Frequency: 850/900/1800/1900MHz Network protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
| LED Indication | GPS/GPRS |
|
Working Temperature |
-30℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) |
