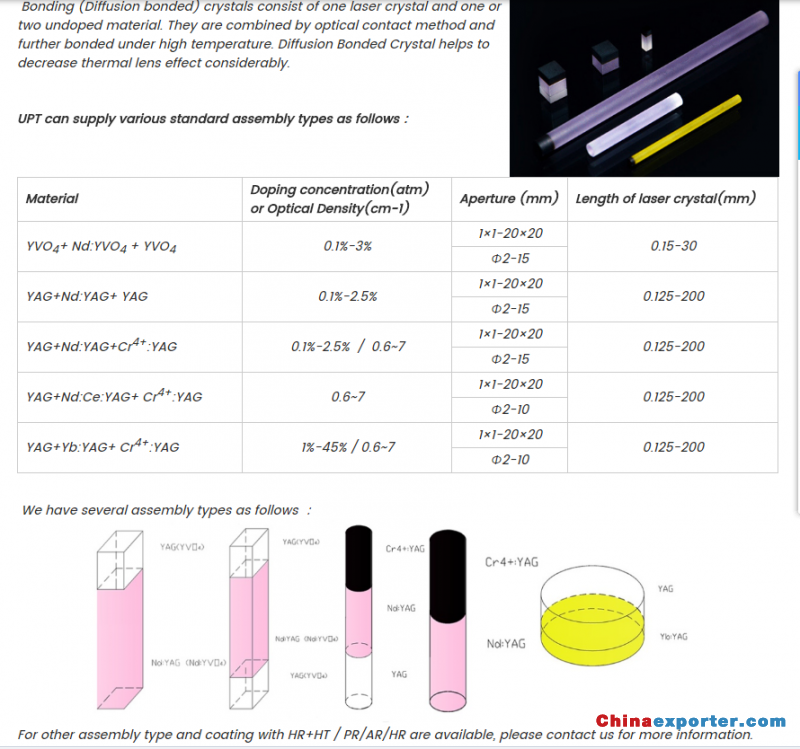

Diffusion Bonded Crystal
Bonding (Diffusion bonded) crystals consist of one laser crystal and one or two undoped material. They are combined by optical contact method and further bonded under high temperature. Diffusion Bonded Crystal helps to decrease thermal lens effect considerably.
UPT can supply various standard assembly types as follows：
|
Material
|
Doping concentration(atm) or Optical Density(cm-1)
|
Aperture (mm)
|
Length of laser crystal(mm)
|
|
YVO4+ Nd:YVO4 + YVO4
|
0.1%-3%
|
1×1-20×20
|
0.15-30
|
|
Φ2-15
|
|||
|
YAG+Nd:YAG+ YAG
|
0.1%-2.5%
|
1×1-20×20
|
0.125-200
|
|
Φ2-15
|
|||
|
YAG+Nd:YAG+Cr4+:YAG
|
0.1%-2.5% / 0.6~7
|
1×1-20×20
|
0.125-200
|
|
Φ2-15
|
|||
|
YAG+Nd:Ce:YAG+ Cr4+:YAG
|
0.6~7
|
1×1-20×20
|
0.125-200
|
|
Φ2-10
|
|||
|
YAG+Yb:YAG+ Cr4+:YAG
|
1%-45% / 0.6~7
|
1×1-20×20
|
0.125-200
|
|
Φ2-10
|
We have several assembly types as follows ：
For other assembly type and coating with HR+HT / PR/AR/HR are available, please contact us for more information.
