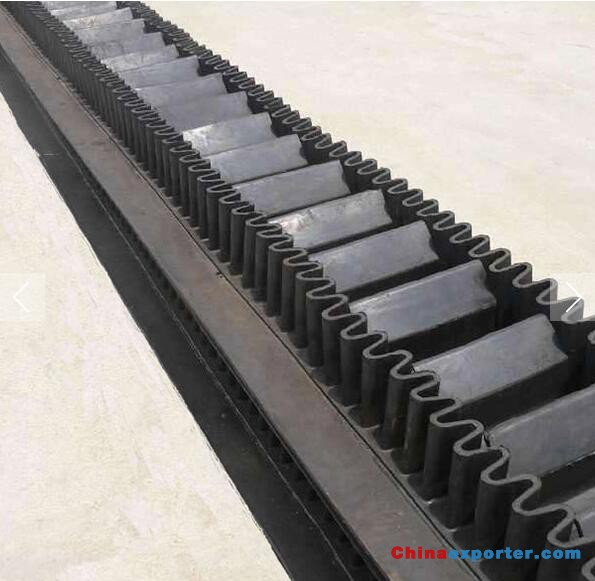

Sidewall Rubber Conveyor Belt Core

Cotton/Nylon/EP/Steel Cord

Cleat

made of  enforced fabric, solid, anti-shock to avoid distortion

Types: T, TS, C, TC and TCS

"TS" and "TCS"  are normally used for abrasion condition

"T" and "TS"  are normally used up to 40 degree

"TC" and "TCS" are normally used from 40 degree to 90

Sidewall Rubber Conveyor Belt Core

Sidewall Rubber Conveyor Belt features

a) increases the transmission angle (30 to 90 degrees);

b) small footprint, low investment;

c) throughput, a high degree of upgrading higher;

d) to tilt from horizontal (or vertical) to a smooth transition;

e) sala for easy transportation of powdery, granular, small block, paste and liquid-like materials;

f)  low consumption, simple structure, belt high strength, long service life.

The parameter relationship of the base belt width and flange height is as the following table(mm):
