Brand:Qingman
deliver goods:Within 3 days

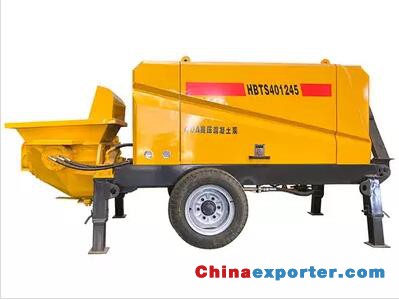

Secondary Structural Column Pump
Concrete delivery pump, also known as concrete pump, is composed of pump body and delivery pipe. It is a kind of machinery that uses pressure to continuously transport concrete along the pipeline. It is mainly used in housing construction, bridge and tunnel construction.
Specification:
|
project |
parameter |
|
Product model |
Type 15 secondary structural column pump |
|
Cement conveying capacity |
5-8 m3/h |
|
pressure |
10mpa |
|
Vertical conveying distance |
20m |
|
Total power |
15kw |
|
Horizontal conveying distance |
60m |
|
Overall dimension |
2000*750*1100mm |
|
weight |
780kg |
|
Diameter of processed stone |
20mm |
|
project |
parameter |
|
Product model |
Type 20 secondary structural column pump |
|
Cement conveying capacity |
15 m3/h |
|
pressure |
10mpa |
|
Vertical conveying distance |
50m |
|
Total power |
22kw |
|
Horizontal conveying distance |
120m |
|
Overall dimension |
3500*1450*1500mm |
|
weight |
1600kg |
|
Diameter of processed stone |
30mm |
|
project |
parameter |
|
Product model |
Type 30 secondary structural column pump |
|
Cement conveying capacity |
25 m3/h |
|
pressure |
11mpa |
|
Vertical conveying distance |
100m |
|
Total power |
37kw |
|
Horizontal conveying distance |
260m |
|
Overall dimension |
4000*1700*1700mm |
|
weight |
2200kg |
|
Diameter of processed stone |
30mm |
|
project |
parameter |
|
Product model |
Type 40 secondary structural column pump |
|
Cement conveying capacity |
30 m3/h |
|
pressure |
12mpa |
|
Vertical conveying distance |
200m |
|
Total power |
55kw |
|
Horizontal conveying distance |
450m |
|
Overall dimension |
4400*1800*1800mm |
|
weight |
2700kg |
|
Diameter of processed stone |
30mm |
|
project |
parameter |
|
Product model |
Type 50 secondary structural column pump |
|
Cement conveying capacity |
40 m3/h |
|
pressure |
13mpa |
|
Vertical conveying distance |
80m |
|
Total power |
55kw |
|
Horizontal conveying distance |
180m |
|
Overall dimension |
4400*1800*1800mm |
|
weight |
2700kg |
|
Diameter of processed stone |
40mm |
