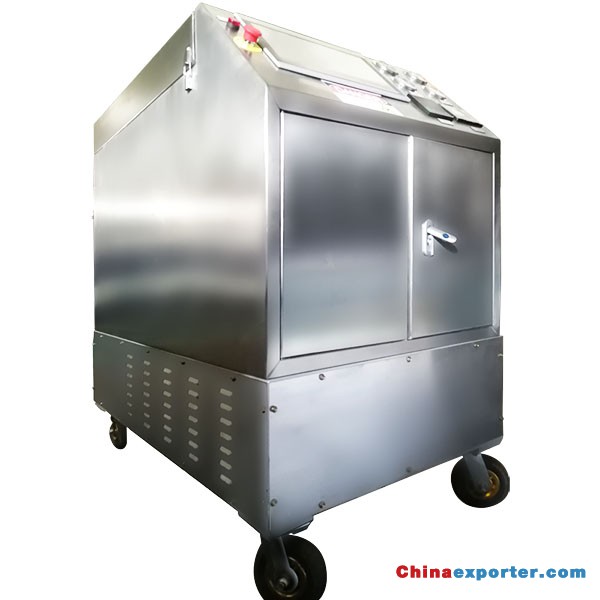

Brand:Licheng
long:1300
width:950
high:1700
Mini Order:1set
1. Scope of application
cutting fluid, tensile emulsion, cold rolling emulsion, semi-synthetic coolant, fully synthetic coolant, cleaning fluid.
2. Working principle
When the cutting fluid is sent into the equipment through the oil transfer pump, when the cutting fluid and impurity particles enter the separation rotor, they are subjected to strong centrifugal force (up to 2000 times the gravity of the impurity self weight), the cutting fluid and impurities move radially to the internal surface of the rotor, and the cutting fluid and impurities are compressed into a thick layer. Due to the different effects of centrifugal force, the cutting fluid flows back to the transfer tank along the reflux tank, and the impurities are adsorbed to the inner surface of the separator and gradually solidified, so as to separate the impurities from the cutting fluid and continuously improve the cleanliness of the cutting fluid.
3. Technical parameters
Model Number :
|
Model Number: |
LC-SJ-HWM-G |
|
Scope of application: |
Water-based |
|
Filtration Method: |
Centrifugal Separation |
|
Slag Discharge Mode: |
Automatic Slag Discharge |
|
Start Mode: |
Soft Start |
|
Power Supply data: |
Three Phase AC 38V 50Hz |
|
Total Power (Kw): |
48 |
|
Control Panel: |
Siemens Touch Panel |
|
Drum Capacity (L): |
20 |
|
Drum Speed (r/min): |
11600 |
|
Centrifugal Effect: |
99% |
|
Working Pressure (Mpa): |
0.4 |
|
Working Noise: |
≤75 dB(A) |
|
Maximum Handling Capacity: |
6000 |
|
Recommended Flow (L/H): |
6000 |
|
Working Temperature for Oil (℃): |
45 |
|
Oil Content After Purification: |
＜5% |
|
Impurity Content In Filtered Oil: |
＜5% |
|
Filtering Accuracy (μm): |
2 |
|
HS Code: |
8421299090 |
|
Equipment Size (mm): |
1300*950*1700 |
|
Package Size (mm)： |
1480*1080*1750 |
|
Net Weight (kg): |
830 |
|
Gross Weight (Kg): |
880 |
4. Benefits to customer
1) Under the same conditions, the service life of cutting fluid will be extended at least twice;
2）Reduce the cost of hazardous waste treatment by at least 75%
3）Process cutting fluid without shutdown;
4) Prolong the service life of cutter and machine tools;
5) Improve the machining accuracy of workpieces and reduce defective products;
6)improve the factories'environment, solve the odor problem and reduce the turnover rate;
7) Improve environmental protect
