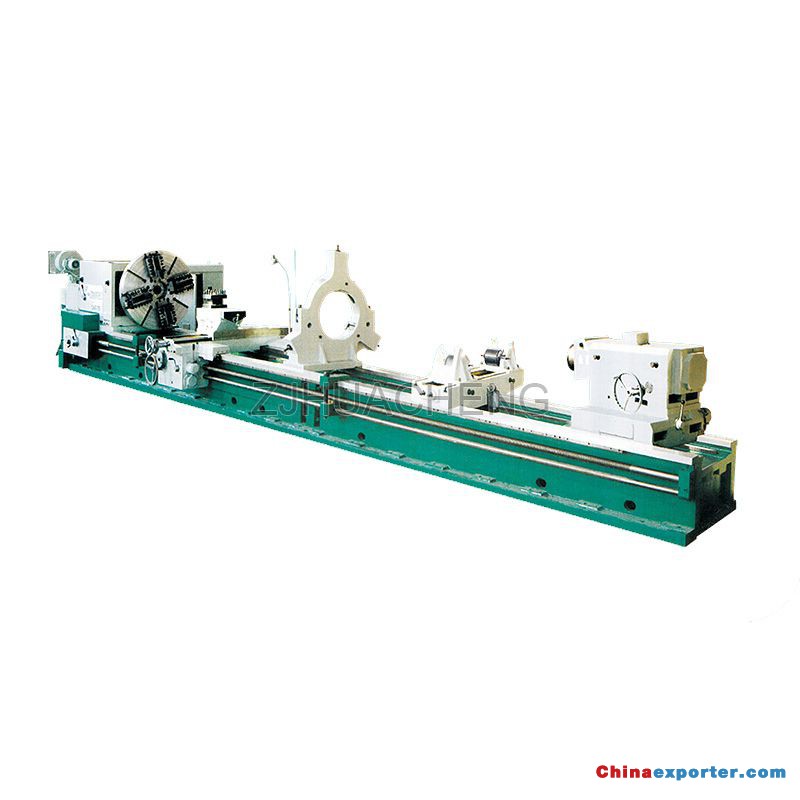

CW-6 Unniversal Heavy Duty Lathe
|
|
|
|||||
|
Metric threads range(pitch) |
1-60mm |
|||||
|
Inch threads range(inch) |
1/2-30 |
|||||
|
Longitudinal feeds range |
0.1-6mm/spindle every turn |
|||||
|
Cross feed range |
0.05-3mm/ spindle every turn |
|||||
|
Rapid feed:long/cross |
3400mm/min,1700mm/min |
|||||
|
TOOL-POST |
|
|||||
|
Tool section |
45×45mm |
|||||
|
CARRIAGE |
|
|||||
|
Cross slide travel |
700mm |
800mm |
||||
|
Compound rest travel |
280mm |
|||||
|
TAILSTOCK |
|
|||||
|
Sleeve diameter |
Φ280mm (With built-in small spindle) |
|||||
|
Sleeve taper |
Φ100 taper 1:7 |
|||||
|
Sleeve travel |
300mm |
|||||
|
MOTOR |
|
|||||
|
Main motor |
55KW(DC） |
|||||
|
Rapid feed motor |
1.5KW |
|||||
|
Tailstock motor |
1.5KW |
|||||
This Huasheng-heavy duty lathe is a universal lathe, suitable for high speed steel and hard alloy cutter to process axial parts, cylinder type and disk parts of different materials,turning excircle, section, slot, boring holes and inner cone. It also turning various threads.
Unniversal Heavy-duty Lathe supplier:Huasheng
Spindle is three supporting structure, driven by DC motor , spindle speed range is 3-200r/min with 4gear stepless speed regulating.Lathe adopt rectangular guide ways. The whole bed seems to be a box with high rigidity. Lathe is equipped with a separate pump, forced lubrication, carrige box, the tool post, saddle, tailstock can fast moving. Heavy-duty Unniversal Lathe has high rigidity, high efficiency, safe and reliable, convenient operation and attractive appearance etc.
