deliver goods:Within 3 days

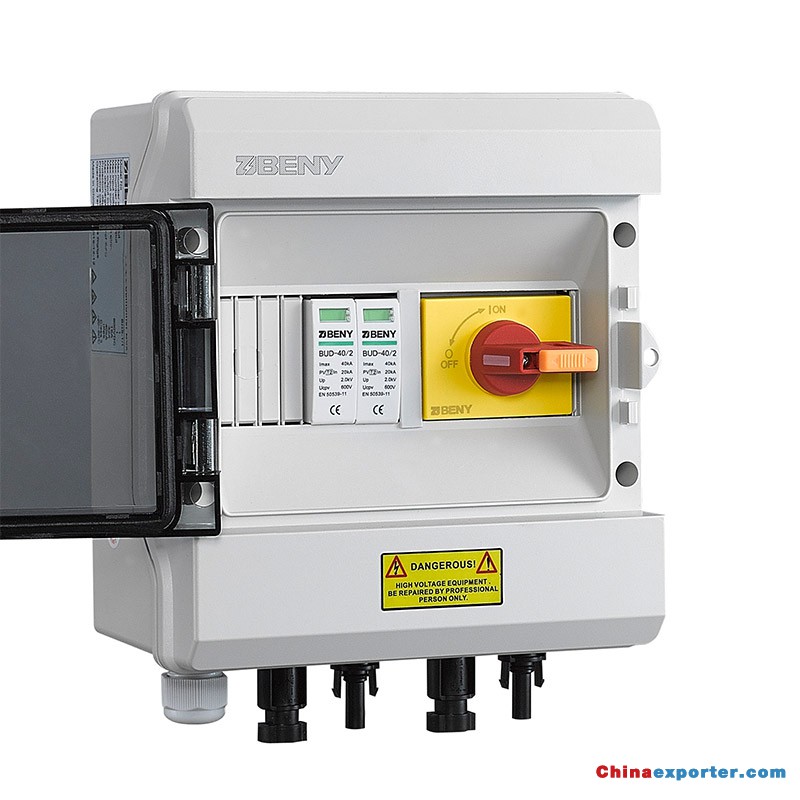

ZJBENY BHS-1/1M 600V DC Solar PV Combiner Box Pre-wired MC4 Connectors 1 In 1 Out for On/Off Grid Solar Panel System
Solar photovoltaic junction box description
The solar DC box is equipped with high quality solar DC components to provide maximum protection
BHS-1/1M 600V Solar Box is equipped with a true solar DC circuit breaker,
600V DC surge discharge model 2 for overvoltage protection.
All true-and-true DC components are pre-assembled in a durable PC housing.
Prewired MC4 connectors on input and output are optional.
Features of 600V DC Solar Photovoltaic Converter Box:
* 600VDC
* 1 string input
* 1 string output
Shell: BX - 08
* IP65 outdoor and indoor protection rating
* UV resistant, flame retardant PC material
|
Model |
BHS-1/1M 600V |
|
Certificate |
TUV |
|
Standard |
IEC62109-1, IEC61439 |
|
Warranty |
5 Years for any quality problems |
|
Number of input strings |
1 |
|
Number of output strings |
1 |
|
Protection Degree |
IP65 (polycarbonate) |
|
Dimension |
210*194*120mm |
