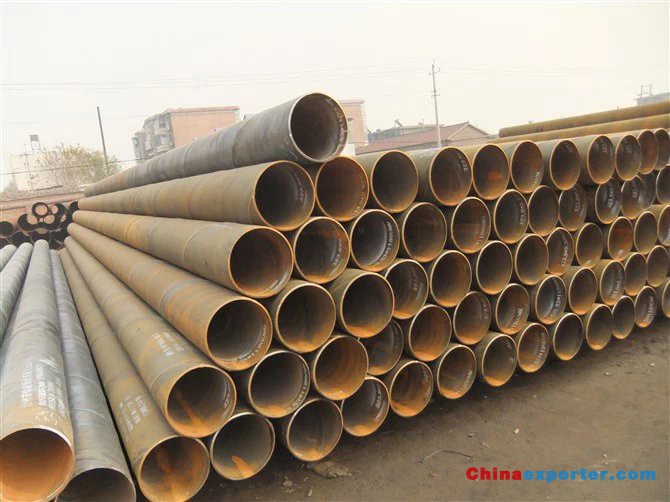

Spiral welded pipe(SSAW pipe, also called HSAW pipe). The pipe is formed by spiral submerged arc welding technology. Spiral welded pipes are formed using narrower plates or hot rolled coils, which lowers their production costs significantly. The welding line shape like a helix. The spiral welding process permits the production of large-diameter pipes suitable for transporting large volumes of oil and gas. Some SSAW pipes were historically limited to low-pressure applications.

OD size: 219.1 mm - 2540mm (8"-100")

Wall thickness: 3.2mm - 25.4mm

Length: 6 - 22 m

Standard: API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS, JIS, IS

Certificate: EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
