deliver goods:Within 3 days

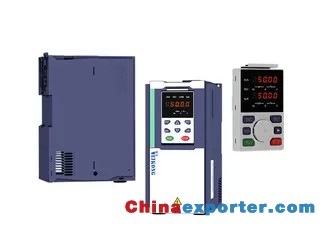

0.75KW 1.5KW 2.2KW 4KW Single Phase Solar Pump Inverter For Solar Irrigation System
Product Features:
1, Support both DC/AC input and 220V level
2, Support both single phase output and three phase output
3, Built-in C3 EMC filter for better harmonic and VDR grounding conforming
4, Widely working voltage can work as low as 350V-800VDC for 380V level and 200-410VDC for 220V level
5, Support input power from solar panels, on-grid power, generator..
6, Can be used with solar panels in day time, at night with on-grid power or generator
7, Can switch between solar panels and on-grid power automatically
Electrical Specifications
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
