INTRODUCTION
1, New type holster, streamline design.
2, Large LCD makes the reading clearly.
3, metallic screen board with stronger antimagnetic and anti-interferential function.
4, Full function protection, anti-high voltage circuit design.
5, New type battery case design ,it is easy to change battery .
SPECIFICATIONS
| Basic Function | Range | Basic accuracy | |
| DC Voltage | 200mV/2V/20V/200V/600V | ±(0.5%+4) | |
| AC Voltage | 200V/600V | ±(1.2%+10) | |
| DC Current | 200uA/2mA/20mA/200mA/10A | ±(1.5%+3) | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+5) | |

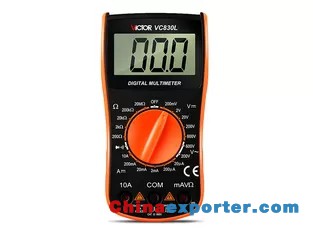

| Special Function | VC830L | ||
| Diode test | √ | ||
| Continuity buzzer | √ | ||
| Low battery indication | √ | ||
| Input impedance | 10MΩ | ||
| Sampling rate | 3times/s | ||
| AC frequency response | (40-400)Hz | ||
| Operation way | Manual range | ||
| Max. Display | 1999 | ||
| LCD size | 57×33mm | ||
| Battery | 9V(6F22) | ||
General Characters
| Product color | Case: dark gray ; Holster color : yellow |
| Product Net Weight | Approx. : 150g(include battery ) |
| Product Dimension | 138×72×35mm |
| Standard Accessories | Test leads / battery /instruction manual |
| Standard inner packing | Color box |
| Standard Quantity Per Carton | 60Pcs |
| Carton Size | 470×325×350mm |
| Standard Gross Weight |
Approx. : 20 kg |
