Brand:Ansha fluid
Nominal Size:4.0"~12"
Connection:Tri-clamp / Flange / weld
Body Material:SS304 / SS316L / HC22 / TA2
Mini Order:1Sets
Supply:1Sets
deliver goods:Within 30 days
Buy now

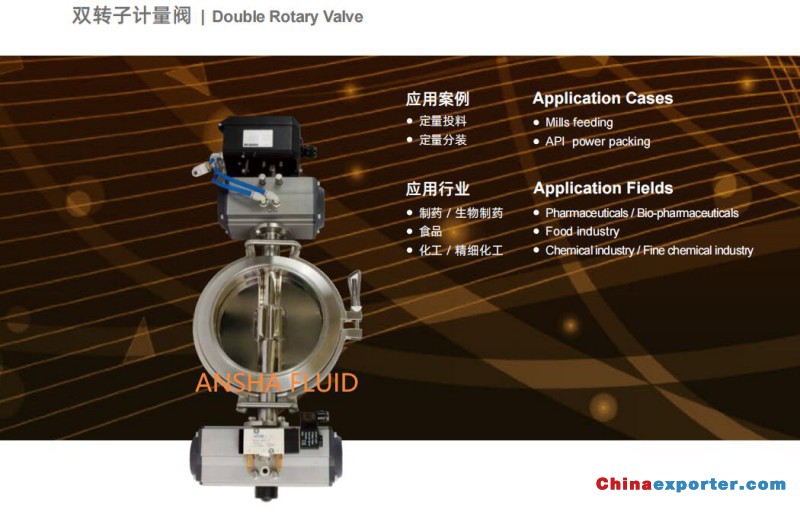

Double rotary valve is normally matched with the distributing and weighing system. There is a main disc for fast discharging and the small rotor is for fine dosing of material. Suitable for the precision packing of the sterile APIs| Double Rotary Valve | |
| Techincal Parameters | |
| Nominal Size | 4.0"~12" |
| Connecting Method | Tri-clamp / Flange / weld |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+0.5MPa |
| Working Temperature | -40～+150℃ |
| Working Medium | Powders / Granules |
| Body Material | SS304 / SS316L / HC22 / TA2 |
| Sealing Material | FKM / EPDM / VMQ / FFKM |
| operation | Pneumatic / Electrical |
| operation of Big disc | Pneumatic actuator (reciprocate 0- 90º) |
| operation of Little rotor |
Pneumatic actuator (reciprocate 0- 180º) Electrical motor (rotated 360º) |
| Surface roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
| Optional Accessories | Intelligent valve positioner |
