Brand:Ansha fluid
Nominal Size:4.0"~12"
Connection:Flang / Tri-clamp
Body Material:SS304 / SS316L / HC22 / TA2
Mini Order:1Sets
Supply:1Sets
deliver goods:Within 30 days
Buy now

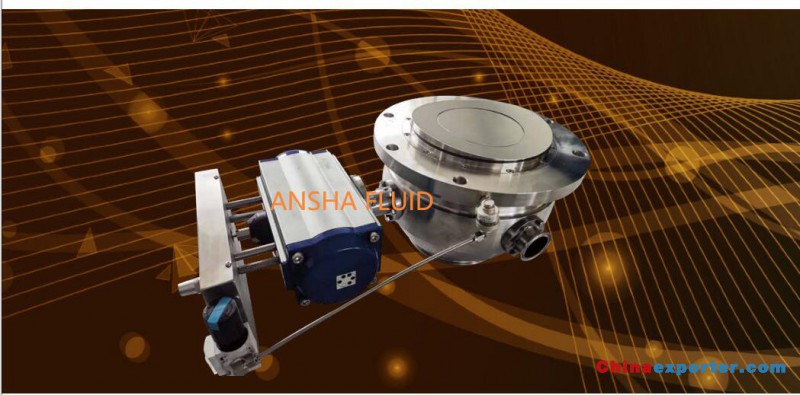

The working principle of sanitary segment ball Valve: The compressed air will push the seal ring to the segment ball, and form seal between the valve body and the segment ball. Before the valve is open or close, the compressed air will be released, so there is no contact between the soft seal and the segment ball (no friction). This will prolong the service life of the soft seal. Also to prevent the wear and tear of the seal particles from falling into the products. The pneumatic control will meet the explosion-proof requirement. Sanitary segment ball valve is suitable for fluids, powders and particles. It is widely used in the F & B, Biological engineering, milk powder and sugar industries.
| Sterile Segment Ball Valve | |
| Techincal Parameters | |
| Nominal Size | 4.0"~12" |
| Connection | Flang / Tri-clamp |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+0.5MPa |
| Working Temperature | -40～+150℃ |
| Working Medium | Powders / Granules |
| Body Material | SS304 / SS316L / HC22 / TA2 |
| Sealing Material | FKM / EPDM / VMQ / FFKM |
| Sterilized method | SIP ( Sterilize in place) |
| operation | Manual / Pneumatic |
| Surface roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
| Optional Accessories | Intelligent valve positioner/ Pneumatic control box |
