Brand:Ansha fluid
Nominal Size:2.0"~12"
Connection:Tri-clamp / Flange
Body Material:SS304 /SS316L / HC22 / TA2
Mini Order:1Sets
Supply:1Sets
deliver goods:Within 30 days
Buy now

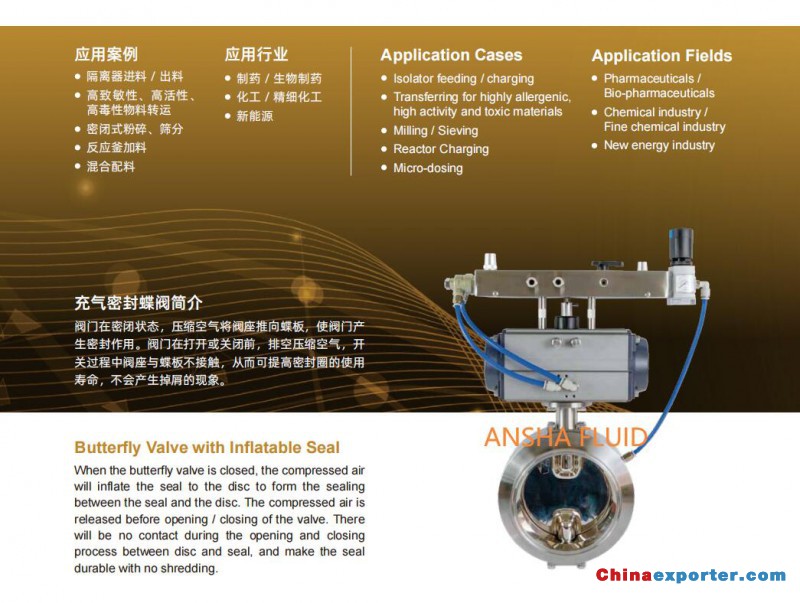

Butterfly Valve with Inflatable SealWhen the butterfly valve is closed, the compressed air will inflate the seal to the disc to form the sealing between the seal and the disc. The compressed air is released before opening / closing of the valve. There will be no contact during the opening and closing process between disc and seal, and make the seal durable with shredding.
| Techincal Parameters | |
| Nominal Size | 2.0"~12" |
| Connecting Method | Tri-clamp / Flange |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+0.5Mpa |
| Working Temperature | -40～+150℃ |
| Working Medium | Powders |
| Body Material | SS304 /SS316L / HC22 / TA2 |
| Sealing Material | FKM / EPDM / VMQ / FFKM |
| Valve structure | Concentric / Eccentric |
| CIP and SIP | Sterilize in place(SIP) |
| Operation | Manual / Pneumatic |
| Surface roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
| Optional Accessories | Position indicator (Limit Switch) |
