Brand:Ansha fluid
Nominal Size:105mm / 190mm / 270mm / 350mm
Main Material:α port: SS316L+POM; β Part: SS316L / POM / PE
Operation:Manual
Mini Order:1Sets
Supply:1Sets
deliver goods:Within 30 days
Buy now

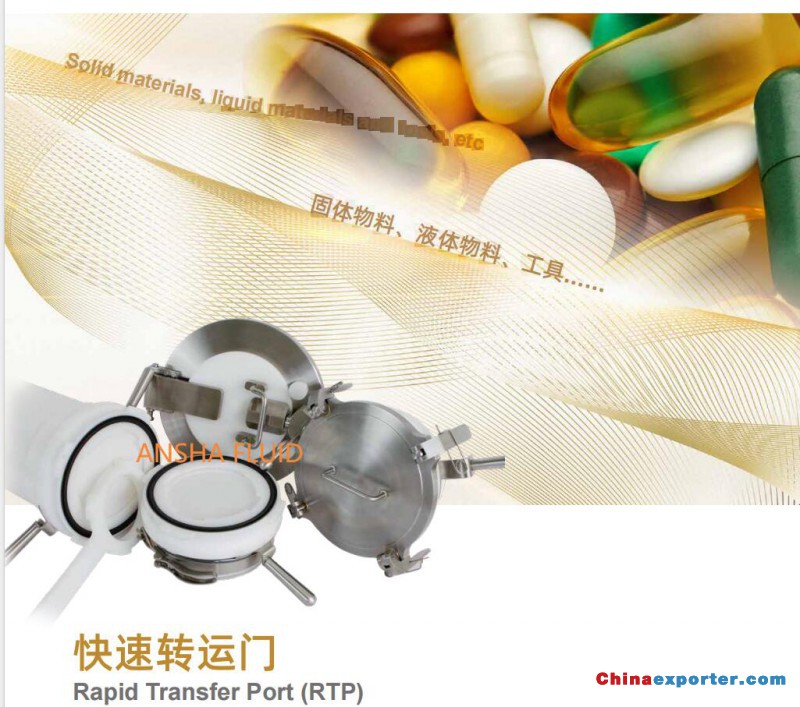

Rapid Transfer Port, or Aseptic RTP, for transferring of materials to a containment. It is designed to operate by using the α port and the β part. The α port is installed on the discharge port of the equipment(Isolator for example), and the β part with transfer container can be removed from the α port. The materials only be transferred to the isolated system when docked.
| Techincal Parameters | |
| Specification | 105mm / 190mm / 270mm / 350mm |
| Working Pressure | + / -500Pa |
| Leakage rate | 1X10-4 mbar L / S @ 800Pa |
| Working Temperature | +20℃~+30℃ |
| Main Material | α port: SS316L+POM |
| β Part: SS316L / POM / PE | |
| Sealing Material | FKM / VMQ / EPDM / FFKM |
| Sterilization method | α ports: VHP (with isolator) |
| β Parts: Steam sterilization / Drying Sterilization | |
| Operation | Manual |
| Surface roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
| Parts transferred | Solid materials /Liquid materials / Tools, etc |
| Optional Accessories | α ports sterilize parts / β parts protective parts / β parts pressure part / β parts key / Transfer container / Transfer PE bag |
