Brand:Ansha fluid
Nominal Size:1.0"~8.0"
Connection:Tri-clamp / Flange
Body Material:SS304 / SS316L / HC22 / TA2
Mini Order:1Sets
Supply:1Sets
deliver goods:Within 30 days
Buy now

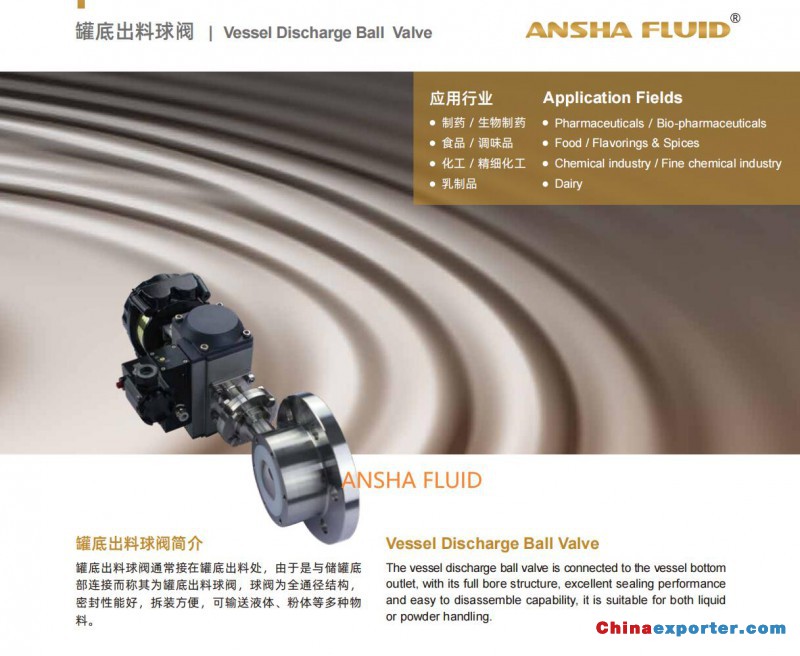

The vessel discharge ball valve is connected with the bottom of vessel, with its full bore structure, excellent sealing performance and easy to disassemble capability, Both liquid medium and the powders are available for handling.
| Techincal Parameters | |
| Nominal Size | 1.0"~8.0" |
| Connection | Tri-clamp / Flange |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+0.5MPa |
| Working Temperature | -40～+150℃ |
| Working Medium | Gas / Liquid |
| Body Material | SS304 / SS316L / HC22 / TA2 |
| Sealing Material |
FKM(VITION) / EPDM / VMQ / FFKM (Comply with FDA 21 CFR177.2600） |
| Operation | Manual / Pneumatic / Electric |
| Surface Roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
