Multi axial geo grids are several times more effective than biaxial and uniaxial geogrids in preventing settlement, ideal for extending the life of roadbeds.
This product has a rectangular rib section, an equilateral triangle inner hole, and a positive hexagonal outer edge. It boasts low 2% cut line tensile modulus and high 5% cut line tensile modulus, making it ideal for foundation work.
Type: Multi-Axial geogrid
Use: For highway, railroad, national road foundation, soft foundation treatment
Length and width: 4m-6m*50m
Color: Black
Three Dimentional Multi Axial Geogrid
Material: Polypropylene
Mesh shape: multiple triangle
Modulus: 125-400KN
Rib spacing: biaxial-directional reinforcement
Performance: Multi-directional stability reinforcement

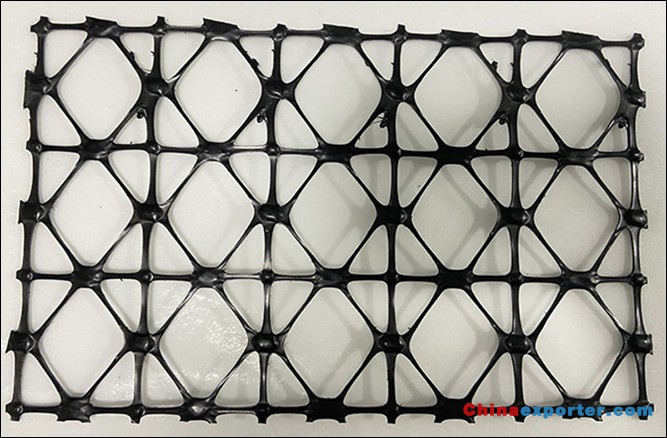

Multi Axial Geogrid Mesh Rolls
The extruded plastic mesh material has great tensile strength in all directions, is in full contact with the roadbed.
Multiaxial Geogrid Technical Datasheet
|
Tensile Strength at 2% Strain (MD&CD)≥(KN/m) Machine/Cross/45°/135°Direction |
200 | 300 | 400 |
|
Tensile Strength at 5% Strain (MD&CD)≥(KN/m) Machine/Cross/45°/135°Direction |
140 | 140 | 140 |
|
Tensile Strength at 2% Strain (MD&CD)n(KN/m) Machine/Cross/45° /135° Direction |
4 | 6 | 8 |
|
Tensile Strength at 5% Strain (MD&CD)(KN/m) Machine/Cross/45°/135°Direction |
6 | 8 | 16 |
|
Tensile Strength≥(KN/m) Machine/Cross/45°/135°Direction |
10 | 15 | 20 |
| Elongation≤(%) Machine/Cross/45°/135°Direction | 13 | 13 | 13 |
| Carbon black content (%) | 2 | ||
Tensile Strength: The tensile force required to produce a rupture in a strip of geogrid sheet, measured in MD & CD, expressed in KN/m.
