Matched Microscopes:
Olympus CX series.
Nikon E100 & E200
Leica DM500 & DM750
Zeiss PrimoStar

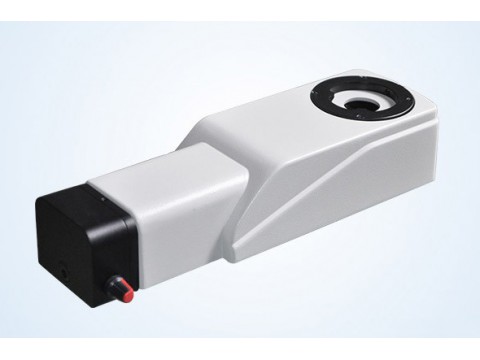

UV LED Fluorescence Illumination Features
- 5W LED light source.
- Modular design.
- Small volume and light weight.
- Slider transfer between fluorescence and brightfield.
- Special for UV filter sets.
Advantages
- LED light source has longer working life than mercury lamp.
- No waiting to start and stop the illumination, you can use it at anytime with no waiting.
- High power 5W LED, it makes sure much brighter fluorescence.
- Different UV wavelength filters are optional to meet users different needs.
- Pre-set light path, one stop to install and use, no need to adjust the microscope.
- Well fit to microscope Olympus, Nikon, Leica, Zeiss, Motic, etc.
- No waiting and one stop installation to improve working efficiency.
- Brighter fluorescence under UV excitation.
- Save budget to buy a new fluorescence microscope.
- Compatible to most famous brands microscope, easy to achieve.
- Small and light weight, convenience to move and take.
Parameters :
Filter Set |
UV |
Central wavelength |
365nm |
Excitation filter wavelength |
330nm~380nm |
Dichroic mirror wavelength |
>400nm |
Emission filter wavelength |
>420nm LP |
Optional UV filter wavelength |
Option 1 |
Option 2 |
Central wavelength |
385nm |
395nm |
Excitation filter wavelength |
365nm~400nm |
380nm~410nm |
Dichroic mirror wavelength |
>420nm |
>420nm |
Emission filter wavelength |
>420nm LP |
>420nm LP |
