Diamond Grinding Cup Wheel
Click image to view original image
Brand: ChangSheng
Mail： sale01@best-saw-blade.com
Price: 1.20USD/piece
Min.Order: 120 piece
Supply 9000000 piece
Delivery: Shipment within 15 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-01-10 09:35
Hits: 244394
Buy
Company Detail


Details

Product Photo

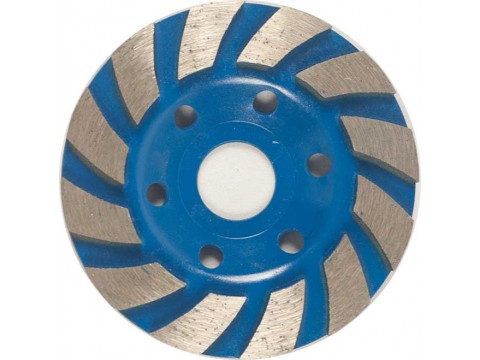

Product Name Diamond Grinding Cup wheel
Brand Changsheng/CSOr As your order
Packing &Weight 150 PCS per 1 Carton
Net weight:0.15-0.18kg per PCS
Gross weight:25-30 kg per Carton
Features:Unique diamond powder formula,it is one-piece sintering, not welding.Excellent wear resistance,best quality.
Usage:Brick blocks, Concrete, Marble, Granite,Stone and many of materials
Apply Machinery& Use Method:
Angle grinde,Wet Or Dry Cutting Follow the product instructions.
Technology Data(Accept order)
Model Outside Diameter
(mm) 		Outside Diameter
(Inch) 		Bore Diameter
(mm) 		Bore Diameter
(inch) 		SegmentThickness
(mm) 		Segment Height
(mm)
W1003H1 100 4 16/20 0.629/0.787 5 10
W1003E2 100 4 16/20 0.629/0.787 5 10
W1003L3 100 4 16/20 0.629/0.787 5 10
W1001H1 100 4 16/20 0.629/0.787 6 17
W1001E2 100 4 16/20 0.629/0.787 6 17
W1001L3 100 4 16/20 0.629/0.787 6 17
W1002H1 100 4 16/20 0.629/0.787 6 10
W1002E2 100 4 16/20 0.629/0.787 6 10
W1002L3 100 4 16/20 0.629/0.787 6 10
