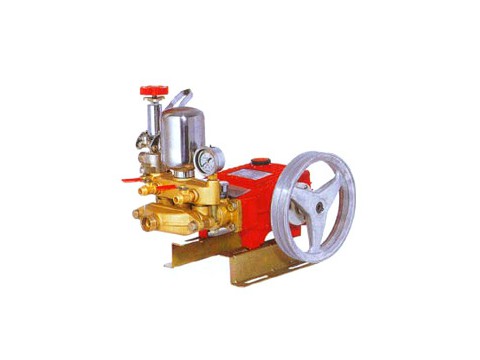

Plunger pump
Click image to view original image
Brand: Kimcredence
Model： Plunger pump
Specification： 1.5hp-10hp
Price: Negotiable
Min.Order: 30
Supply 5000
Delivery: Shipment within 15 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2021-11-29 12:11
Hits: 262758
Enquiry
Company Detail


Details
Model TF-22C3 TF-22C3A TF-22C2 TF-22C2A TF-45C1 TF-45C1A TF-50C TF-70C TF-100
Plunger no.×dia×stroke(mm) 3×22×16 3×22×16 3×22×16 3×22×16 3×30×20 3×30×20 3×30×28 3×32×32 3×38×38
Plunger length(mm) 129 129 129 129 140 140 134 142 161
Spraying pressure(Kg/cm2) 20-40 20-40 20-40 20-40 20-40 20-40 20-40 20-50 20-50
Suction(L/min) 18-22 18-22 18-22 18-22 20-36 20-36 20-45 35-70 55-110
Speed(R.P.M) 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000
Power 1.5-2.5HP 1.5-2.5HP 1.5-2.5HP 1.5-2.5HP 4-5.5HP 4-5.5HP 3.5-6HP 7-9HP 8-10HP
Weight(kg) 9.2 9.2 9.2 9.2 12 12 18 19 32
Dimension(cm) 37×28×32 37×28×30 37×28×32 37×28×30 42×31×36 42×31×32 42×32×37 46×32×44 60.5×38×56.5
