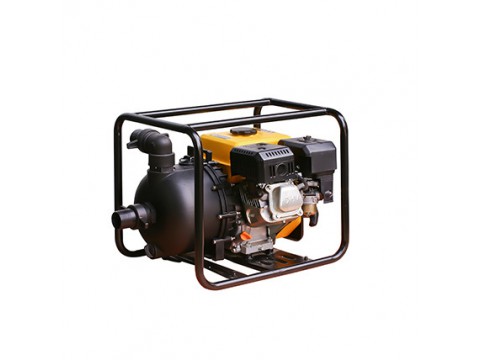

Gasoline Chemical pump

Click image to view original image
Brand: Kimcredence
Model: Gasoline Chemical pump
Specification: 2"-3"
Price: Negotiable
Min.Order: 20
Supply 5000
Delivery: Shipment within 15 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2021-11-29 12:11
Hits: 215103
Enquiry
Company Detail


Details

Description:

Suit for seawater, underground water,plastic abrasive material, faintly acid, alkalescence, low ignition temperature chemical products; be caution to use in dangerous cargo and organic solvent.

Model RT50HB35-3.8Q RT80HB26-3.8Q
Engine R210 R210
Engine type Single cylinder, 4-Stroke(OHV) Single cylinder, 4-Stroke(OHV)
Starting system  Recoil starter Recoil starter
Displacement  70×55mm 70×55mm
Bore×Stroke  212ml 212ml
Compression ratio 9.0 : 1 9.0 : 1
Net power 4.4kw / 3600rpm 4.4kw / 3600rpm
Fuel consumption  ≤395(g/kw·h) ≤395(g/kw·h)
Net torque 12N.m / 2500rpm 12N.m / 2500rpm
Pump set  2" chemical pump 3 chemical pump "
Suction port diameter  50mm(2") 75mm(3")
Discharge port diameter 50mm(2") 75mm(3")
Suction head lift 7m 7m
Total head lift 35m 26m
Discharge capacity  32m³/h 60m³/h
Dimensions (L×W×H) 500×395×446mm 610×425×462mm
Net weight  26kg 27kg
