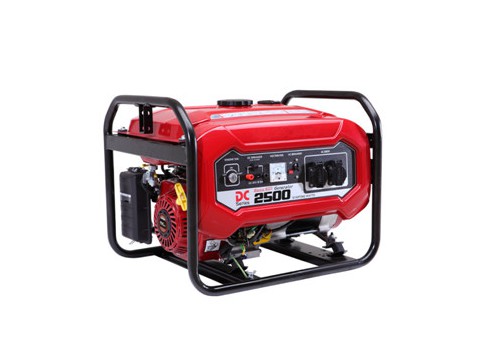

Click image to view original image
| Model | LC2500D(D)C | LC3000D(D)C | LC3500D(D)C | LC5000D(D)C | LC6500D(D)C | LC8000D(D)C |
| Engine model | G200F/G200FD | G200F/G200FD | G210FA/ G210FAD | G390F/G390FD | G390F/G390FD | G420F/G420FD |
| Engine type | Single cylinder,4stroke, forced cooling ,OHV | |||||
| Power output | 4.1kW/3600rpm | 4.1kw/3600rpm | 4.4kW/3600rpm | 8.2kW/3600rpm | 8.2kW/3600rpm | 9.0kW/3600rpm |
| Bore×Stroke | 68mm×54mm | 68mm×54mm | 70mm×55mm | 88mm×64mm | 88mm×64mm | 90mm×66mm |
| Displacement | 196cc | 196cc | 212cc | 389cc | 389cc | 420cc |
| Compression ratio | 8.5∶1 | 8.5∶1 | 8.2∶1 | 8.0∶1 | 8.0∶1 | 8.3∶1 |
| Oil capacity | 0.6L | 0.6L | 0.6L | 1.1L | 1.1L | 1.1L |
| Fuel tank capcity | 15L | 15L | 15L | 25L | 25L | 25L |
| Fuel consumption | ≤395g/Kw.h | ≤395g/Kw.h | ≤395g/Kw.h | ≤374g/Kw.h | ≤374g/Kw.h | ≤374g/Kw.h |
| Continuing time | 12h | 12h | 10h | 10h | 9h | 8h |
| Rated frequency | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz |
| Rated voltage | 110V/115V/120V/220V/ 230V/240 | |||||
| Voltage regulator system | Automatic Voltage Regulation | |||||
| Rated output | 2.0kW | 2.3kW/2.5kW | 2.8kW/3kW | 4.0kW | 5.0kW | 6.0kW/6.5kW |
| Max output | 2.2kW | 2.5kW/2.8 kW | 3.1kW/3.3kW | 4.5kW | 5.5kW | 6.5kW/7.0kW |
| Power factor | 1 | 1 | 1 | 1 | 1 | 1 |
| Charging voltage | 12V(DC) | 12V(DC) | 12V(DC) | 12V(DC) | 12V(DC) | 12V(DC) |
| Charging current | 8.3A(DC) | 8.3A(DC) | 8.3A(DC) | 8.3A(DC) | 8.3A(DC) | 8.3A(DC) |
| Starting system | Recoil start/Electic-start | |||||
| Ignition system | Transistorized magneto ignition | |||||
| Noise | ≤75dB(A) | ≤75dB(A) | ≤76dB(A) | ≤76dB(A) | ≤76dB(A) | ≤76dB(A) |
| Dimension | 590×475×460 | 590×475×460 | 590×430×480 | 680×540×545 | 680×540×545 | 680×540×545 |
| Net weight | 42kg/44kg | 46kg/48kg | 49kg/51kg | 75kg/77kg | 79kg/81kg | 83kg/85kg |
