Mpc1500 Litre Vertical Planetary Concrete Mixer Machinery Saudi Arabia 1500L On Sale 1.5M3

Mpc1500 Litre Vertical Planetary Concrete Mixer Machinery Saudi Arabia 1500L On Sale 1.5M3

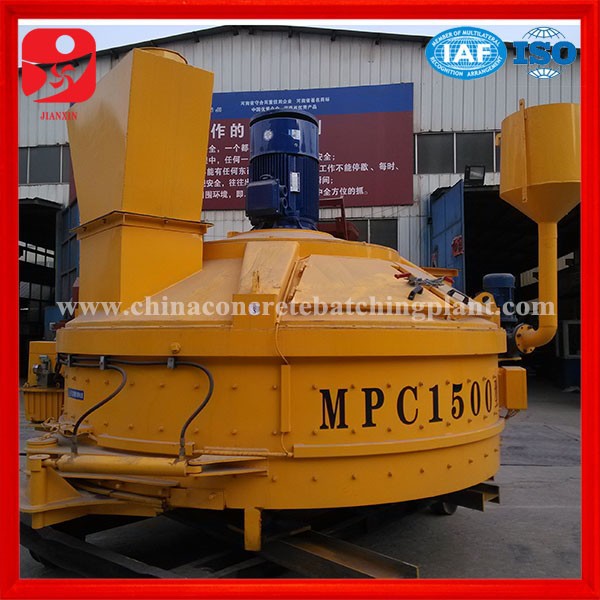

MPC Planetary Concrete Mixer 1500L

FOB Price: US $18,800 - 24,000 / Set

Min.Order Quantity: 1 Set/Sets

Supply Ability: 100 Set/Sets per Month

Port: Qingdao, Tianjin, Shanghai

Payment Terms: L/C,T/T,Western unio,MoneyGram,Paypal, Credit card, Cash

Quick Details

Condition: New

Place of Origin: Henan, China (Mainland)

Brand Name: Jianxin

Model Number: CPM1500

Motor Power: 45KW

Mixing Power: 55KW

Charging Capacity: 2250L

Reclaiming capacity: 1500L

Speed of Mixing Drum: 20r/min

Water Supply Mode: Water Pump

Working Cycle Period: 60s

Discharge Way: Hydraulic Discharging

Outline Dimension: 3223*2902*2425mm

After-sales Service Provided: Engineers available to service machinery overseas

Product name: planetary concrete mixer 1.5m3

Hydraulic discharging power: 3KW

Blade of concrete mixer machine: 2/4 NR

Side scraper blade: 1 NR

Lifting power: 15KW

Elevator bucket theoretical capacity: 2610L

Elevator bucket speed: 0.25M/S

Color: Yellow or customized

Feature: Q235 high carbon steel for whole body

Advantage: 360 degrees no dead angle stirring



Packaging & Delivery

Packaging Details: 1, For full container load, main body with plastic film surrounded or in nude, key parts and spare parts in strong export wooden or iron case. 2, For less than container load, main body and all spare parts in strong export wooden or iron case.

Delivery Detail: Shipped in 10 days after payment

What are applications of mpc1500 concrete mixing machine?

1, Suitable for prefabricated mix of all high quality concrete. Including dry concrete, half-dry concrete, color concrete, steel fiber concrete, foamed concrete and plastic concrete. Get well-proportioned concrete in a short time.

2, Besides concrete, also be used for tubular pile, prefabricated parts, ceramsite, brickmaking, opal glass, refractory material and so on.

3, Therefore, mpc1500 concrete mixing  machine is also suitable for kinds of construction projects, such as bridge and road construction projects.

What are features of cpm1500 concrete mixing machine?



•Low investment, cost effective and labor saving

•Low noise and consumption.

•High production efficiency based on special design

•Powerful and Reliable Gearboxes

•Easy Access for Cleaning and Maintenance

•Compact Design Allows Easy Integration

•Small area required

•Optional Extras available to Meet Your Requirements (skip hoist, dust collector etc.)

•High adaptability, can work with PLD series to be simple concrete mixing plant.

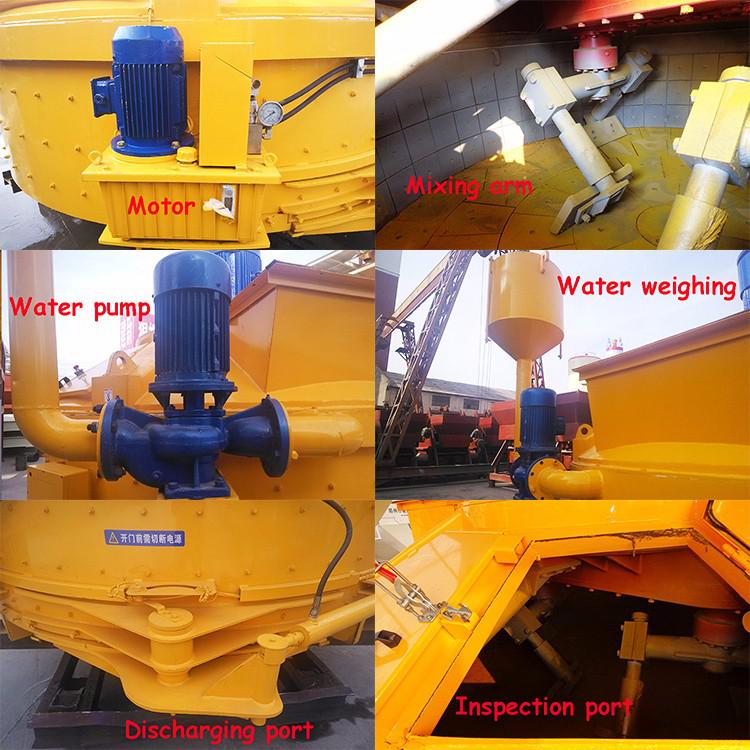

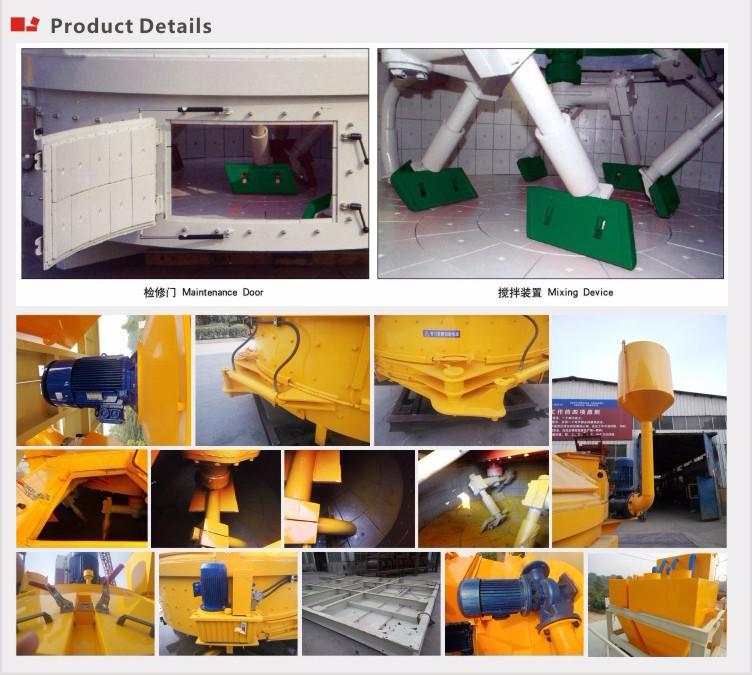

What are components of mpc1500?

Gearing, dasher, discharging device, fluid pump, inspection port, inspection port safety device, viewport, discharging port, mixing arm, connector, cylinder, support leg.



What are advantages of mpc1500 concrete mixing machine?

•Compact design, easy to disassemble and assemble.

•High mixing efficiency, especially suitable for dry concrete.

•Durable, with Q235 high carbon steel for whole body, with automatic lubricating system, wearproof and corrosion-resistant, long service life.

•Adopts special designed hard-teeth reduction gears for gearings, both revolation and rotation. Assures high efficiency and uniform quality.

•Rhombic mixing blades, assures reutilization after 180 rotation in case of abrasion.

•Complex and serried moving trajectory of mixing arms, 360 degrees no dead angle stirring, assures more sufficient mixing.

•No shaft-end seal problem, quite suitable for hard materials.
