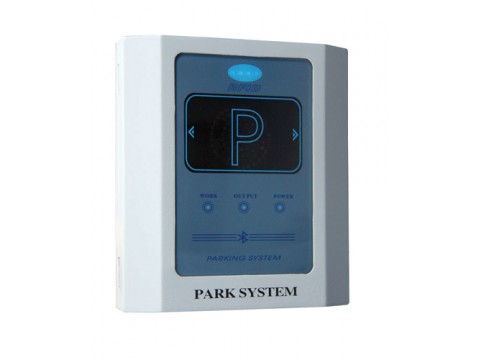

ICR-M8 is long range Bluetooth RFID card reader, adopts the infrared and radio frequency synchronous communication
technology,reading distance up to 20m. It's used for all kind of RFID system and project widely, such as automatic parking management system, person/staff identification, ETC highway station, custom trailer managerment.
Compare with 860~928Mhz UHF long range reader, it have longer read distance, cheaper price,strong penetration and more differentiation for customer.
Features:
1. Quick reading speed, card can be read in 10-80 km/h
2. Long reading distance, 1-15m (adjust by install angle of reader)
3. Strict 60° direction orientation technology to set read direction
4. Adopt CDMA communication and 433MHz widely used in many countries.
5. No interference between adjacent lanes by setting different reader ID
6. No need stop car or open the car window, benefit for drivers.
7. Wiegand 26, RS485,relay output easy for use.
8. With special dynamic key encryption and authentication, to protect dealer's profit
Technical Parameter:
| Identification Distance | 0~15 meter |
| Identification Angle | within 60° tapered region of reader's frontage |
| Sending Channel | 38K |
| Receiving Channel | 433MHz |
| Reading Speed | 10~80km/hr |
| Communication Interface | WieGand26\Relay\RS485 |
| Communication Encryption | based on Bluetooth encryption algorithm |
| Working Voltage | 12V DC |
| Working Temperature | -40~80 degree |
| Dimension | 280*250*46(mm),Pole Bracket φ60*12000mm |
| Weight | 3.5Kg |
| Color | Grey\Grayish-black\Red orange (OEM support) |
