3 axis gantry type milling machine

3 axis gantry type milling machine is suitable for rough, finishing all kinds of horizontal face, inclined plane, vertical plane etc., Milling machine can also be used as large-scale surface grinder and universal milling  machine.

Technical specification of 3 axis gantry type milling machine  X2140

Maximum workpiece size: Long 8000

Maximum workpiece size: Width 4100mm

Maximum workpiece size: Height 1400mm

Table speed 30-1500mm/min

Number of milling head 2

Power of Milling head 5.5kw/7.5kw

Number of Side head 1

Power of Side head 5.5kw

Beam lifting speed 570mm/Minute

Machine maximum volume: Long 17000mm

Machine maximum volume: Width 6400mm

Machine maximum volume: Height 6800mm

Machine weight 80T

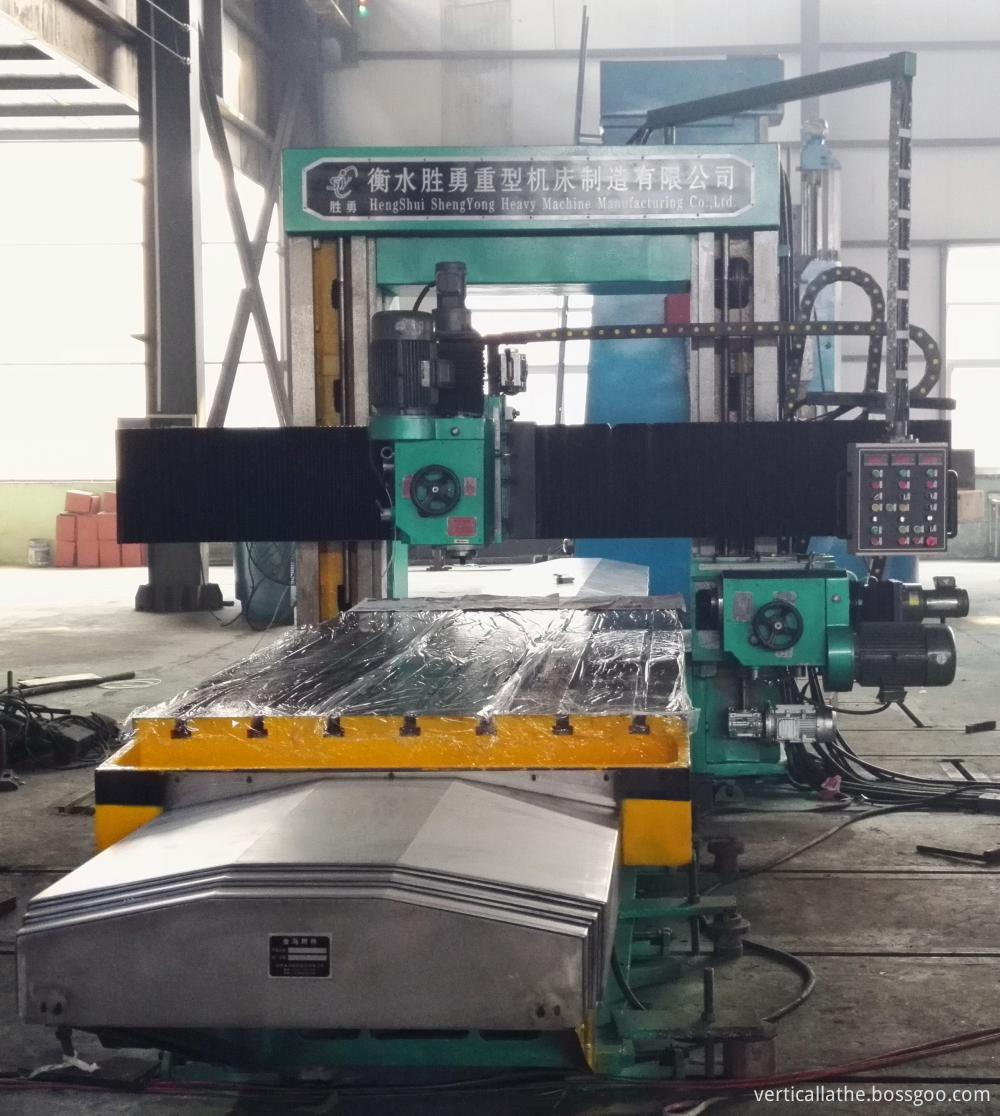

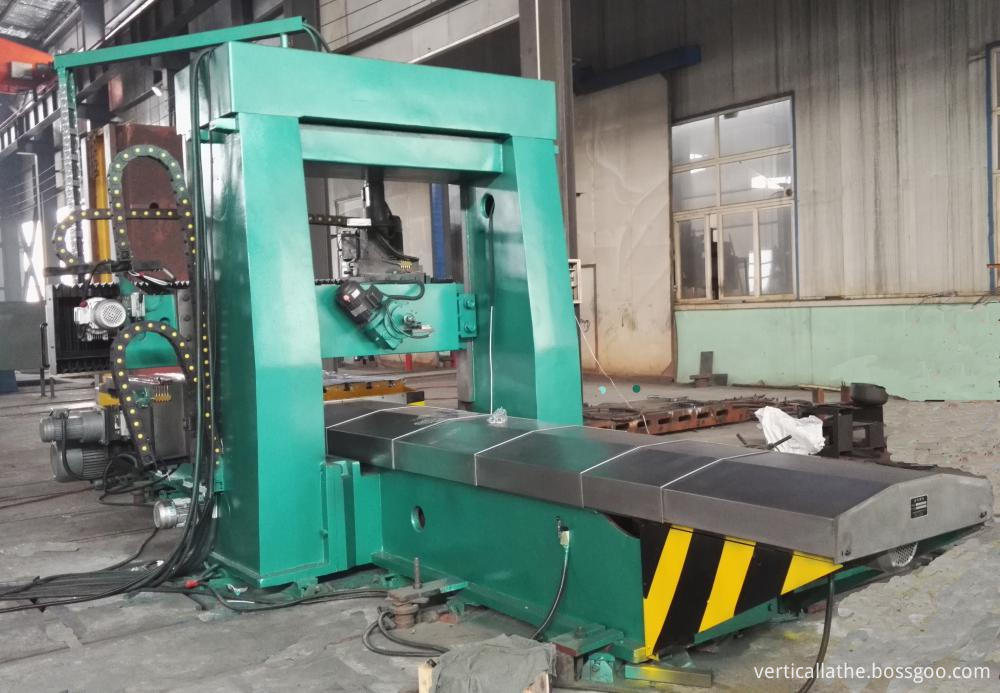

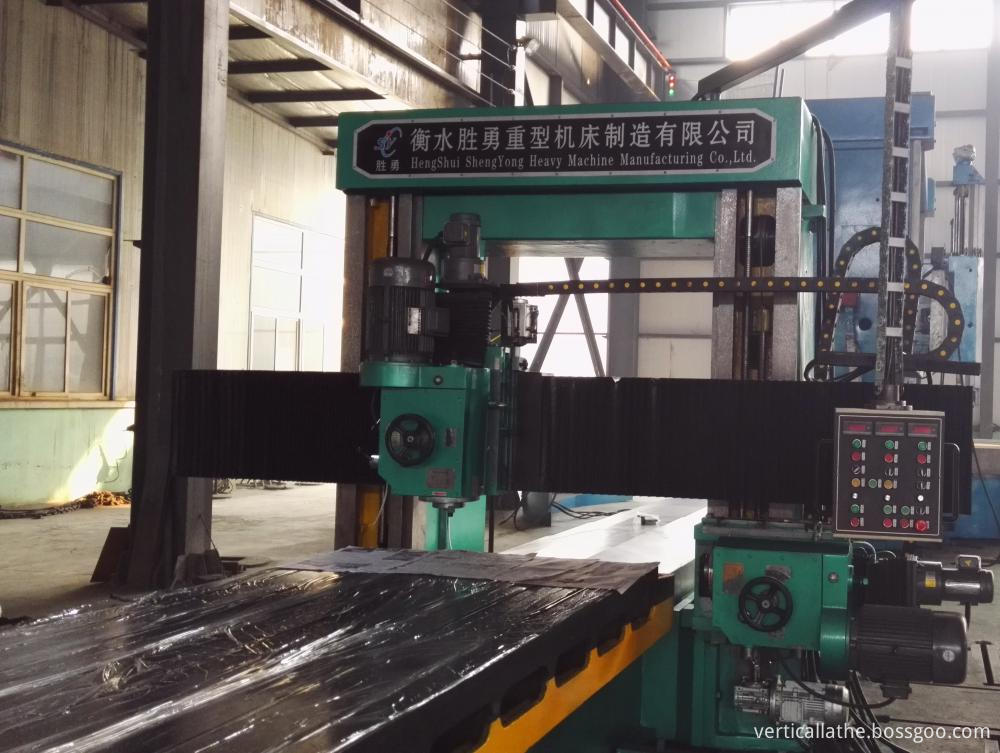

Photo of 3 axis gantry type milling machine
