Light duty warehouse pillar roll forming machine

Light duty warehouse pillar roll forming machine

  Manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings.

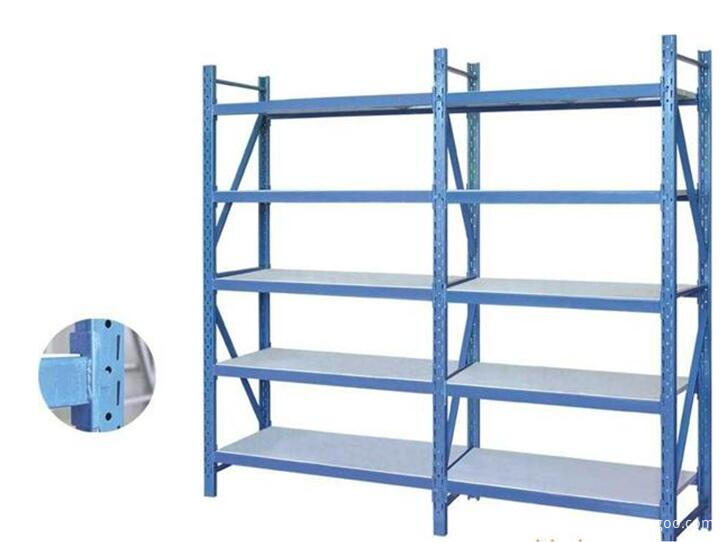

Light duty upright pillar or warehouse shelf pilllar is adopted for manual access of lighter goods supporter. It can be matched with plastic containers stored more varieties of products, widely used in electronic industry and small parts warehouse, laying special rubber plate anti-static function by changing the spray or powder. It

has the characteristics of low cost, safety and reliability, simple assembly and disassembly characters. The light warehouse pillar can be used alone and it can also be freely spliced into various permutations.

  The Light Duty upright pillar roll forming machine is designed to make the up right pillars in batch fully automatically. Here is one of the drawing profiles of Light duty upright pillars for your reference:

For the Light Duty upright pillar roll forming machine parameters for your refernece:

Main Roll Forming Machine:

1) Number of rolling stations: 16 rolling stations

2) Shaft diameter: 60mm

3) Shaft material: 45# steel after quenching.

4) Roller material: 45# steel after 62 to 65 degree quenching

5) Transmission method: chain

6) Motor Brand: Chinese famous brand MengNiu

7) Voltage: 380v, 50Hz, 3 phases or customize

8) Machine frame: Middle plate

9) Machine frame thickness: 20mm

10) Main power: 7.5kw

Hydraulic Shearing system:

1).Material: blade and mold material: Cr12 steel with quenched treated 60-62℃

2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

Control system

1). Screen: Delta screen from Taiwan

2). PLC: Delta DVP14ES from Taiwan

3). Coder: ENC-1-1-1T-24 from South Korea

How to use of upright pillars of light duty:
