Guangdong Fast Elevator Co. is specialized in processing and manufacturing elevators, our factory from China. Our main products cover: Passenger Elevator, Freight Elevator, Restaurant Dumbwaiters, Escalator, Observation Elevator, Conveyor and Parking Elevator, etc. Now we are looking for agencies from all over the world, we have professional engineer and we will quote you best price, please be free to contact us if you want to cooperate with us, hope can hear from you soon. AC-VVVF high speed Residential passenger Lifts
Passenger/Residential/Hotel/Building/Freight Elevator

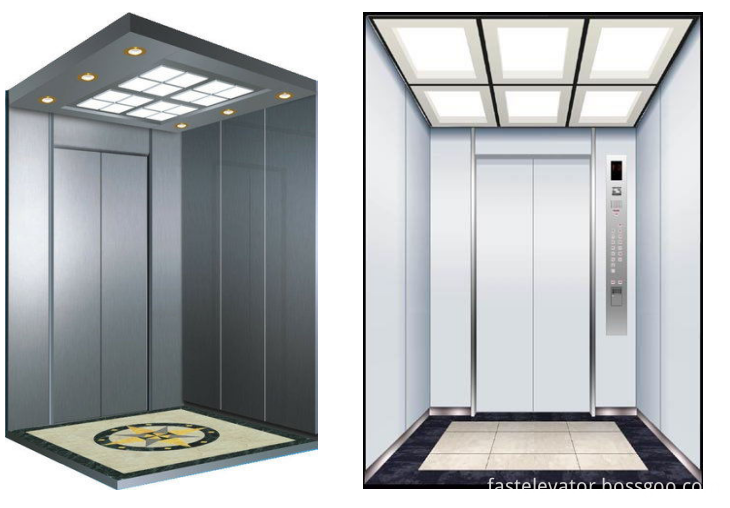

1.Passenger Elevator Standard Type
FAJ-01(Standard)

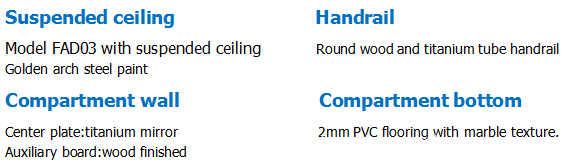

2.Passenger Elevator Luxury Type
FAJ-03(Luxury)

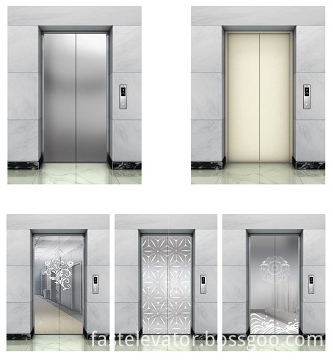

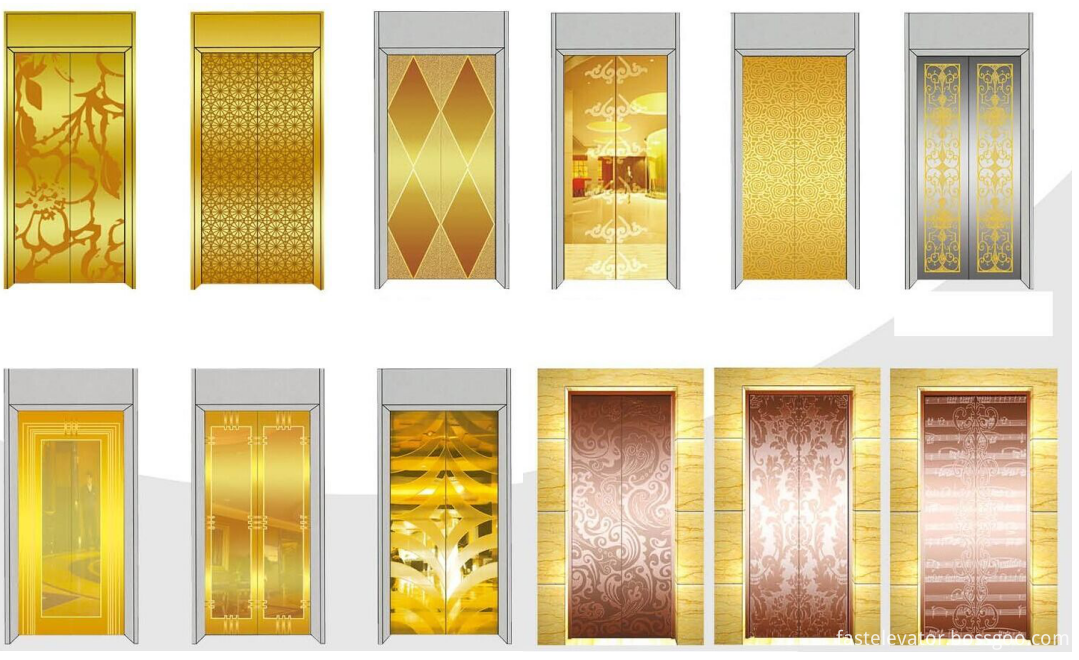

3.Optional Landing Door

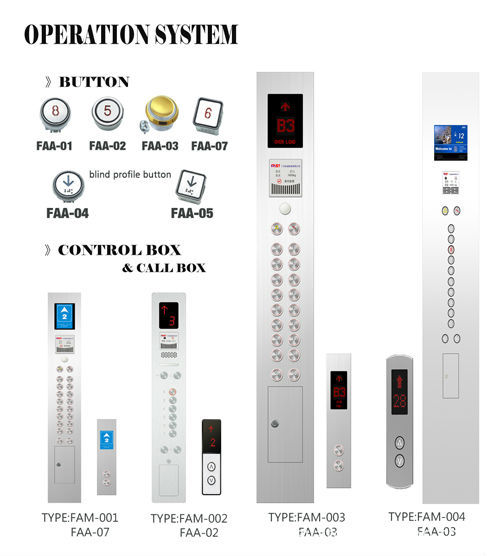

4.Option Panel Series

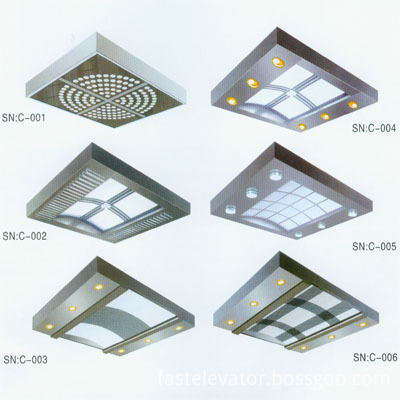

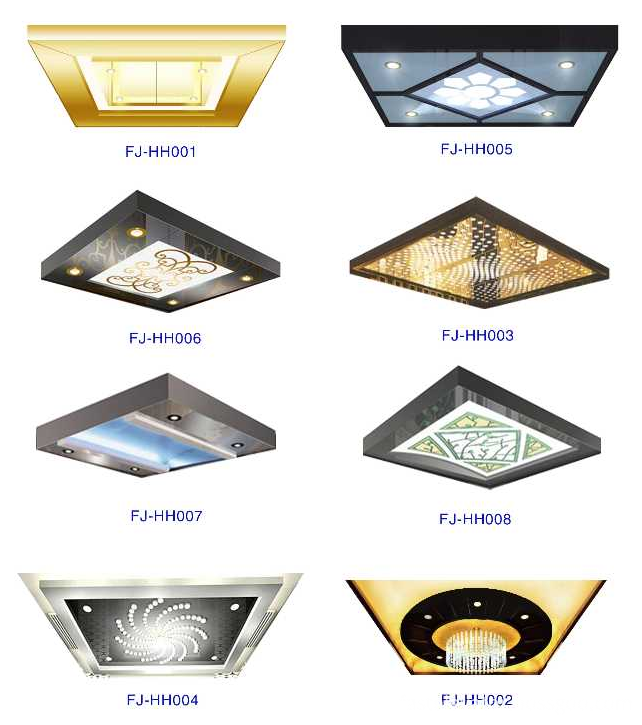

5.Ceiling Series
6.The Difference At Machine Room And Machine Roomless

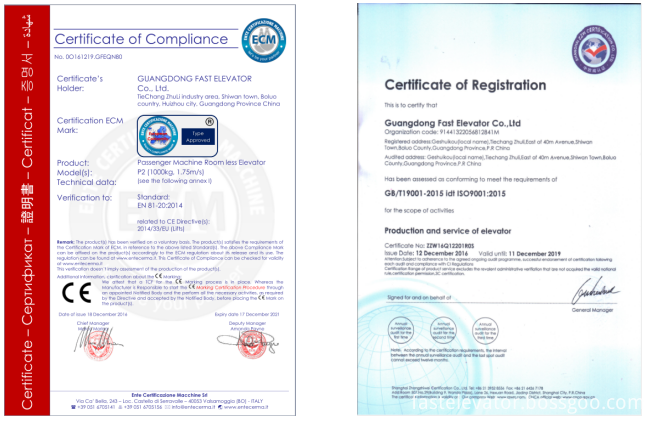

7.Certificate
8.Small Machine Room Elevator technical parameters
Carrying capacity (kg)
Speed(m/s)
Model number
Inner dimension A×B(mm)
Net door Size(mm)
Hoistway
X×Y(mm)
Machine room dimension S×T×U
6
450
1.0-1.75
FAK450
1300×950
700×2100
1800×1650
1800×2000×2500
8
630
1.0-1.75
FAK630
1400×1100
800×2100
2000×1750
2000×2000×2500
10
800
1.0-3.0
FAK800
1400×1350
800×2100
2000×2000
2000×2000×2500
12
900
1.0-3.0
FAK900
1400×1500
900×2100
2000×2200
2000×2200×2500
13
1000
1.0-3.0
FAK1000
1600×1400
900×2100
2200×2100
2200×2100×2500
15
1150
1.0-3.0
FAK1150
1600×1600
900×2100
2200×2300
2200×2300×2500
16
1250
1.0-3.0
FAK1250
1750×1600
1000×2100
2350×2300
2350×2300×2500
18
1350
1.0-3.0
FAK1350
1800×1650
1000×2100
2400×2400
2400×2400×2500
21
1600
1.0-3.0
FAK1600
1950×1750
1100×2100
2900×2300
2900×2300×2500
|
Rate Speed (m/s) |
Top floor headroom height OH(mm) |
Pit headroom height (mm) |
|
|
450-1600 |
1.0 |
4500 |
1500 |
|
1.5/1.6 |
4600 |
1600 |
|
|
1.75 |
4700 |
1700 |
|
|
2.0 |
4800 |
1800 |
|
|
2.5 |
5000 |
2200 |
|
|
3.0 |
5400 |
2500 |
