Panoramic elevator visual field is broad and bright,the shape is unique and delicate,bringing along unque scenery for your building,the visual field is extended,and the norrow space is expanded.

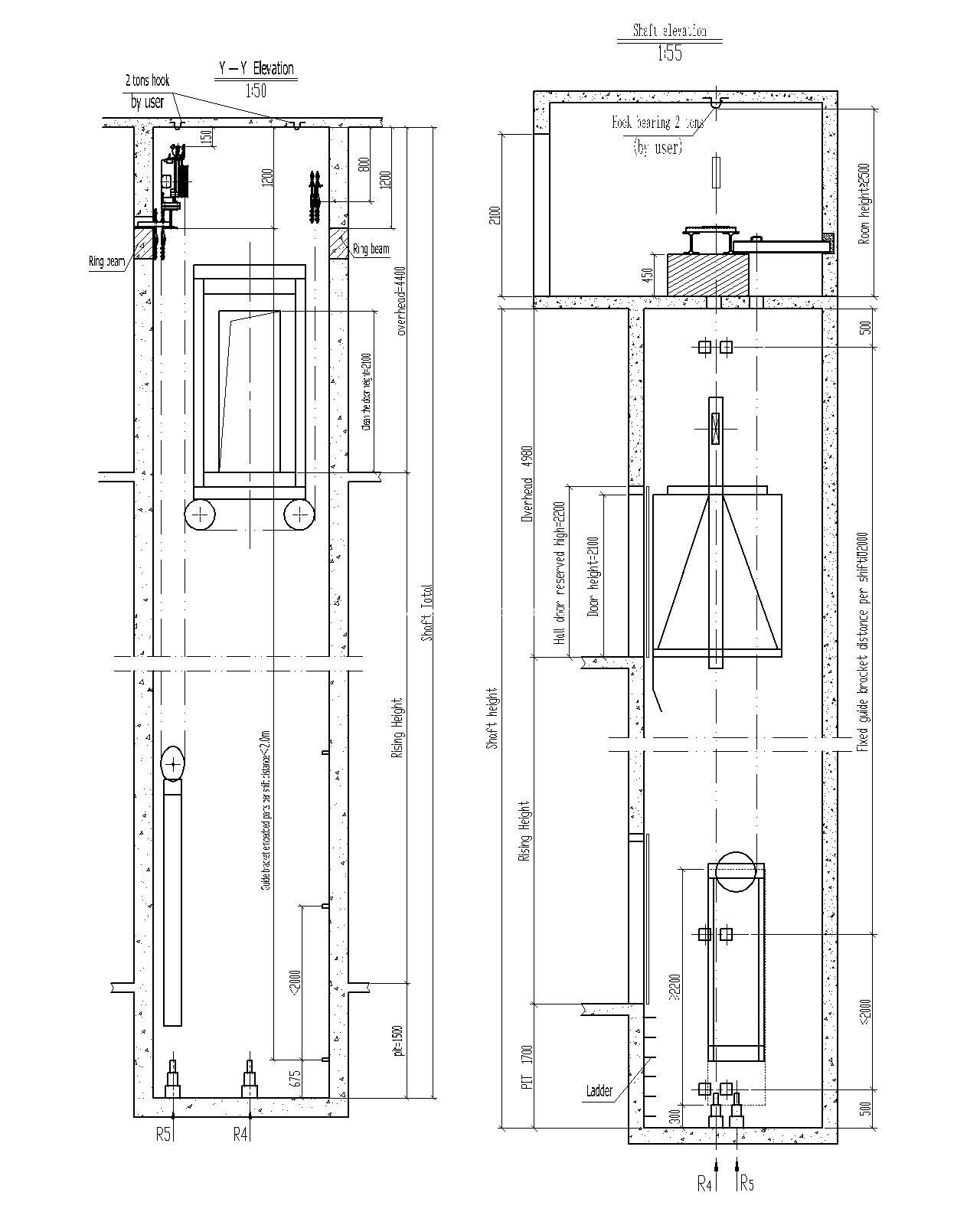

THE DIFFERENCE AT MACHINE ROOM AND MACHINE ROOMLESS
Product Specifcation:
|
Fix number |
Load (kg) |
Speed (m/s) |
Car Size(mm) (Width*Depth) |
Door Opening (mm) |
Hoistway Size (Width*Depth) |
|
6 |
450 |
1.0~1.75 |
1300*950 |
700*2100 |
1800*1650 |
|
8 |
630 |
1.0~1.75 |
1400*1100 |
800*2100 |
2000*1750 |
|
10 |
800 |
1.0~3.0 |
1400*1350 |
800*2100 |
2000*2000 |
|
12 |
900 |
1.0~3.0 |
1400*1500 |
900*2100 |
2000*2200 |
|
13 |
1000 |
1.0~3.0 |
1600*1400 |
900*2100 |
2200*2100 |
|
15 |
1150 |
1.0~3.0 |
1600*1600 |
900*2100 |
2200*2300 |
|
16 |
1250 |
1.0~3.0 |
1750*1600 |
1000*2100 |
2350*2300 |
|
18 |
1350 |
1.0~3.0 |
1800*1650 |
1000*2100 |
2400*2400 |
|
21 |
1600 |
1.0~3.0 |
1950*1750 |
1100*2100 |
2900*2300 |
|
Load (kg) |
Speed (m/s) |
Over Head (mm) |
Pit Deepth (mm) |
|
450~1600 |
1.0 |
4500 |
1500 |
|
1.5/1.6 |
4600 |
1600 |
|
|
1.75 |
4700 |
1700 |
|
|
2.0 |
4800 |
1800 |
|
|
2.5 |
5000 |
2200 |
|
|
3.0 |
5400 |
2500 |
