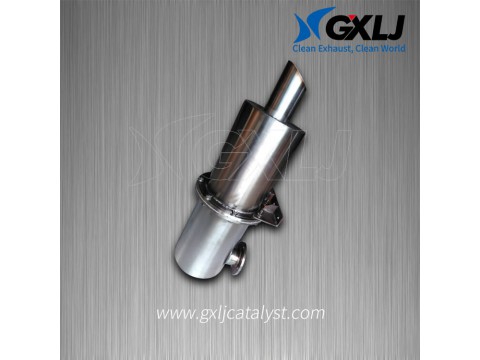

SCR Catalytic Converter Muffler for Diesel Vehicle Diesel Engine

The category Non-road Mobile Machinery (NRMM) includes construction machinery as well as mobile equipment used in mining and agriculture. Exhaust emissions from these machines can cause problems for two main reasons:

· Large-scale construction projects can have a very negative impact on urban air quality because the pollution is concentrated in a small area

· Sometimes machinery is used in confined spaces where the exhaust fumes are a health and safety issue for people working in close proximity

Regulations covering exhaust emissions from NRMM have been progressively tightened but are usually at least one step behind those which apply to road vehicles. Therefore the scope exists to retrofit machines with improved exhaust technology to bring them up to, or ahead of, current standards.

The DOC+DPF system is ideally suited for use on equipment which is operated indoors or in confined spaces such as fork lift trucks, where the benefits of diesel are required but with the cleanliness of gas, or for equipment which is not operating with high duty cycles – such as on construction sites or generating equipment.

1. Fitment: Customized for exhaust treatment of diesel engines ( fit for diesel generators, mining industrial equipment, diesel forklifts, loaders, bulldozers, diggers, heavy-duty trucks etc.)
2. Emission Standard:Euro II,Euro III,Euro IV, Euro V, EPA, CARB Compliant
3. Body Shape: Cylinder
4. Shell Material: Stainless Steel 409, 409L,304
5. Substrate Material: Ceramic Monolith or metallic honeycomb substrate
6. Size: Customized according to customers’ requirements
7. Inlet Connection Type :Slip-fit , available to match the flange
8. Outlet Connection Type:Slip-fit , available to match the flange

Purification rate:

1. · Soot particles (PM): more than 95%
2. · Carbon monoxide (CO):＞90%
3. · Hydrocarbons (HC):＞90%
4. · VOC reduction: 70%
5. · Odor reduction: yes
