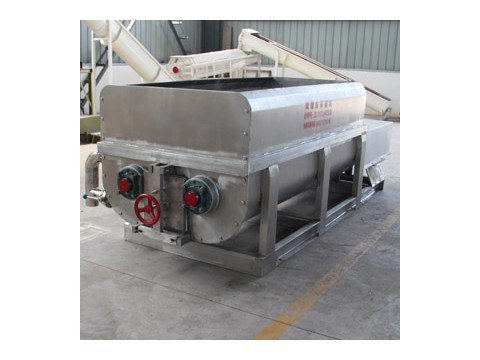

Double helix gluten machine introduction:
At the wheat starch production line, dough mixing, gluten separating and removing is the first important procedure, the double helix gluten machine made by Henan Doing Machinery is based on various equipment at home and aboard, designed independently, and applied for a national patent. Now it is widely used in the wheat starch factory.
Drive the screw propeller in the direction of rotation, make the dough to stir in many directions, mix well with water, then squeeze and rub the dough.
Double helix gluten machine structures:
This gluten machine is composed of machine body, double helix axis and driven system. The stock outlet adopted valve disc, can reduce the amount of broken gluten exhaust, another outlet is in the middle and lower part, can be discharge automatically after opening the door, saving manpower.
Double helix gluten machine working process:
(1) Before start, add the water, then put the flour at one time.(the ratio of water to flour is two to one) water temperature about 20 degree.
(2) Knead dough: need 12 minutes, veering 5-6 minutes, inversion 5-6 minutes, then stop to let the dough not less than 12 minutes.
(3) Wash dough: After (2) steps, add the water about 15kg to hopper, start washing dough, 3 minutes later, stop the machine to discharge the batter.
(4) The second washing time not exceed 5 minutes, and following 2 times could be longer. Above all, wash, discharge, filter, four times, then the gluten will be finished.
(5) Effect: make 25kg flour, need about 45minutes.(not include the stop time) Every 1kg flour can make 0.45kg gluten.
(1) Made by food grade stainless steel, clean and safe, strong anti-corrosion property, easy to maintenance. Vertical reducer motor adopted ensures
(2) Vertical reducer motor adopted ensures low energy consumption, smooth operation, little covering area.
(3) Double helix agitator shaft, high hardness, high strength, high efficiency. Mix well and high wear resistance.
Technical parameters of Doing Co. gluten machine:
You can choose this double helix gluten machine in the light of your capacity requests.
