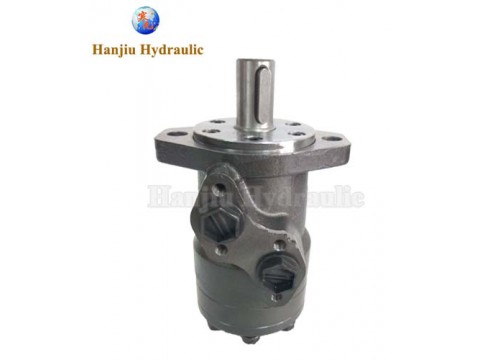

Economical Type Orbit Hydraulic Motor BMP 50 For Industrial Machinery

Click image to view original image

Brand:	Hanjiu Hydraulic
Product Name：	Hydraulic Orbital Motor
Displacement：	50cc,80cc, 100cc,125cc,160cc......500cc
Price:	50.00USD/piece
Min.Order:	1 piece
Supply
Delivery:	Shipment within 10 days since the date of payment
Address:	China
Valid until:	2020-10-16 [Expired]
Updated on:	2018-02-24 11:33
Hits:	26907

Company Detail

Shijiazhuang Hanjiu Technology Co.,Ltd
[Credit File]
Already 0.00 USDSecurity deposit
ContactsJamin Du(Mr.)
Member [Offline] [Add to my friend] [Send mail]
Phone
AreaChina
AddressNo.368 Youyi Street, Xinhua District, Shijiazhuang City, Heibei, China

Details

Orbit Hydraulic Motor BMP 50 Used In Hydraulic Oil Equipment Repair

BMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.

Characteristic Features:

* Orbital hydraulic motors BMP are medium size motors which have compact and light construction.
* Shaft seal can bear high pressure of motor of which can be used in parallel or series.
* Advanced construction design, high power and low weight.

Main Specifications:

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
