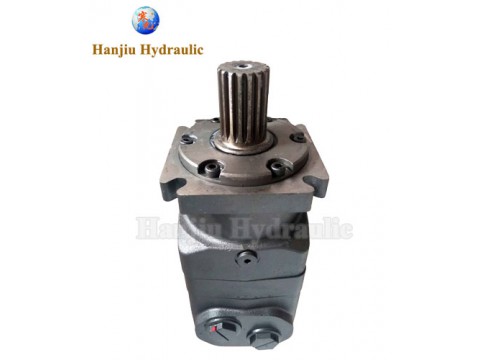

Hydraulic Winch Motor BMV Hydraulic Motors Is An important Element Of A Hydraulic Winch System
BMV series motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
* Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.
type |
BMV 315 |
BMV 400 |
BMV 500 |
BMV 630 |
BMV 800 |
BMV 1000 |
displacement | 333 | 419 | 518 | 666 | 801 | 990 |
speed | 510 | 500 | 400 | 320 | 250 | 200 |
torque | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
output | 38.0 | 47.0 | 47.0 | 40.0 | 33.0 | 28.6 |
pressure | 20 | 20 | 20 | 18 | 16 | 14 |
flow | 160 | 200 | 200 | 200 | 200 | 200 |
weight | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 |
