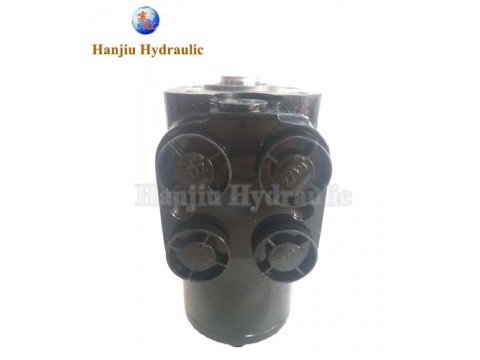

Hydraulic Steering Unit 101S For CASE, FIAT Agriculture / Industrial Tractor Parts
1. Characteristic Features
► 101S Hydraulic Steering Units used for Agriculture and Industrial Tractors, FIAT, New Holland, CASE, Kubota, John Deere, Caterpillar.
► 101S Hydraulic Steering Units fitting for European and American standards, same than Danfoss OSPC, M+S HKUS Serirs Tractor steering units.
2. Specification
| Parameters |
Series 101S-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 |
176 |
